Motorex Engine Complete Oil Change Kit for 2012+ KTM 690 / Husqvarna 701

MotorexSKU: OIL-KIT-MX-10W50-2X1-PF

Filter Type: Paper Filter
Oil: (10w50) 2x1L
Sale price$79.19 CAD
In stock (5 units)

Pickup available at Supplier

Usually ready in 2-4 days

*This is a combo pack* which includes oil and two different filters for your KTM 690 2012+ or Husqvarna 701 engine, your choice of either paper filters or stainless steel reusable filters and 10w50 vs 10w60. We make oil changes easy with this one stop shop kit!

TripleClamp Moto's choice of Oil and Filtration


  • KTM 690 2012+
  • Husqvarna 701 (all models)

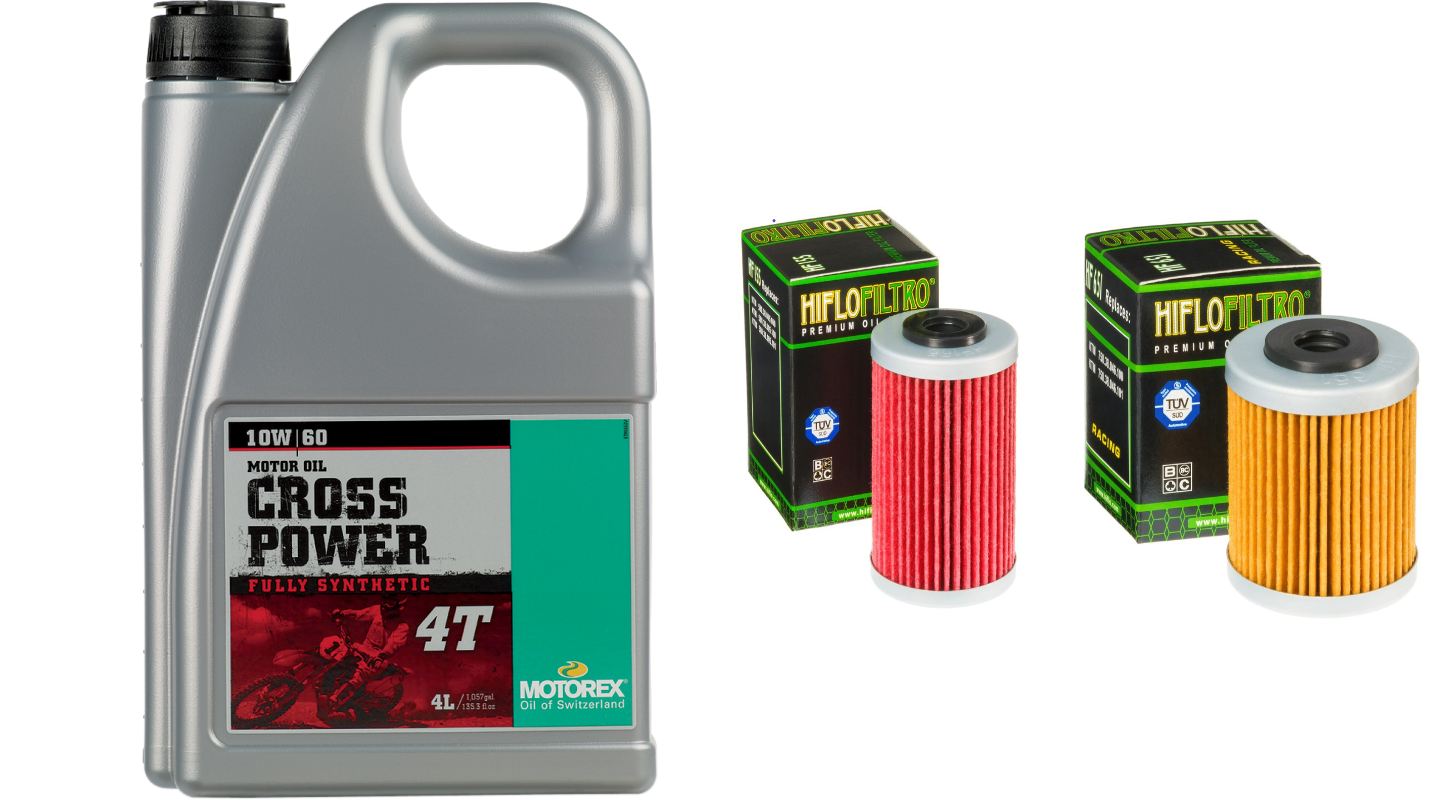

What's Included

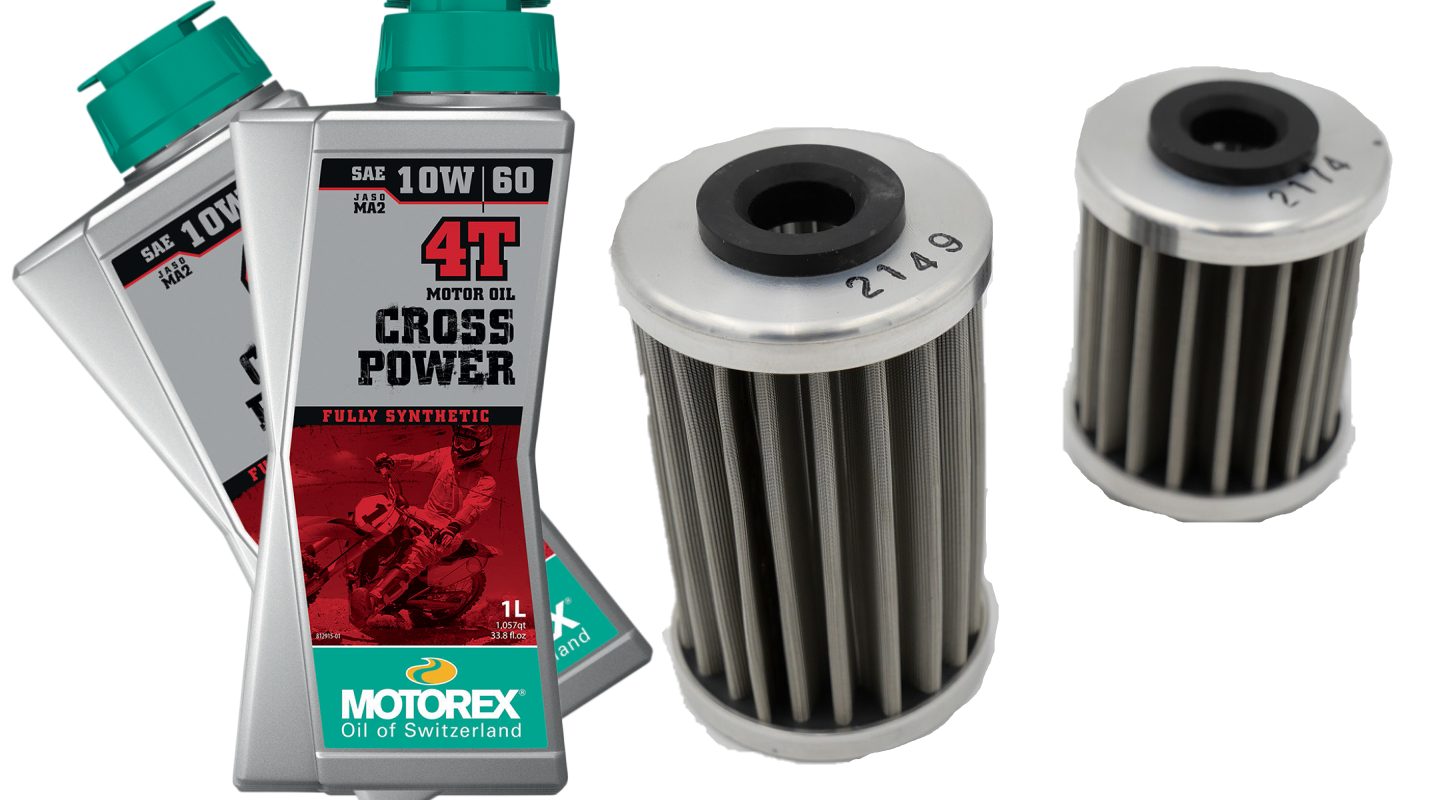

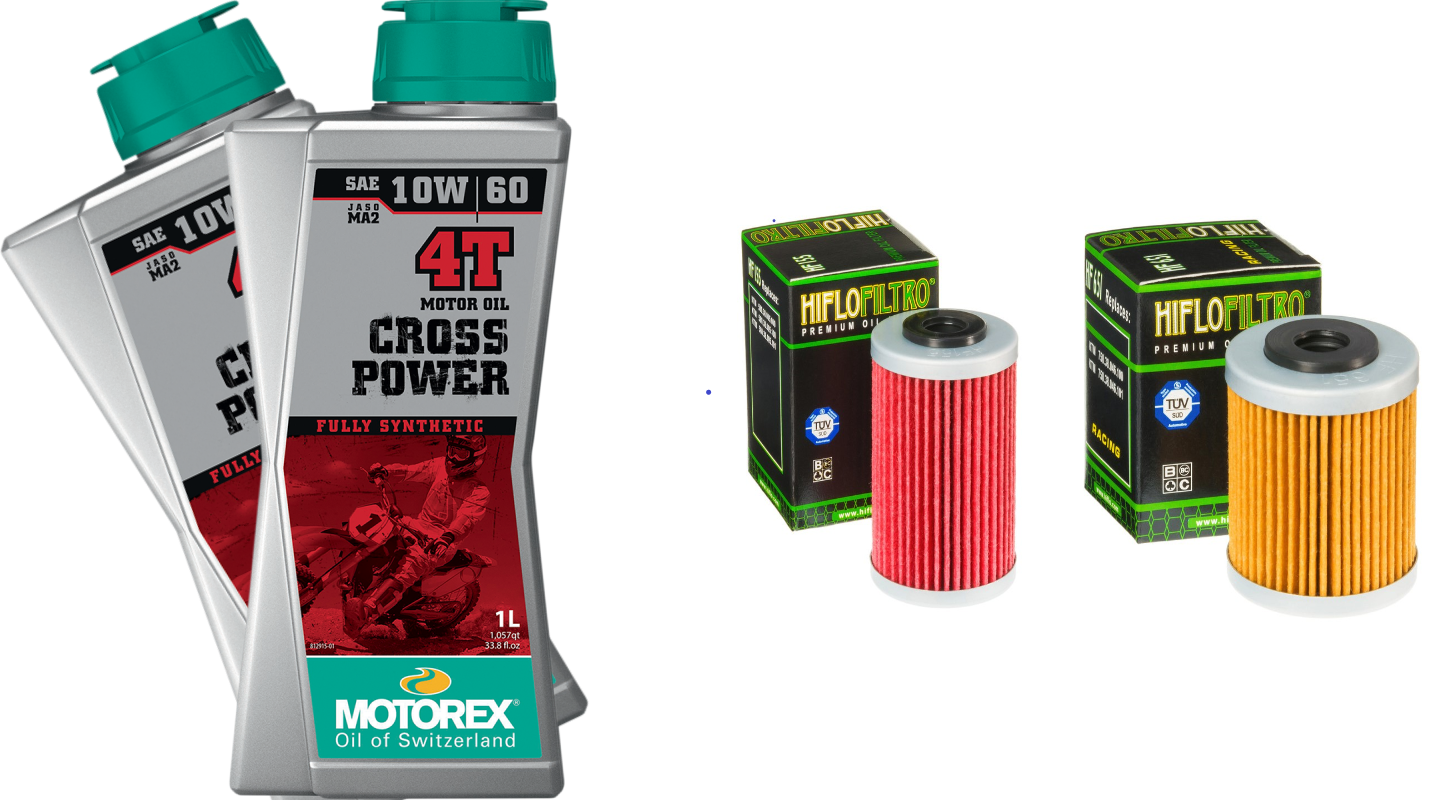

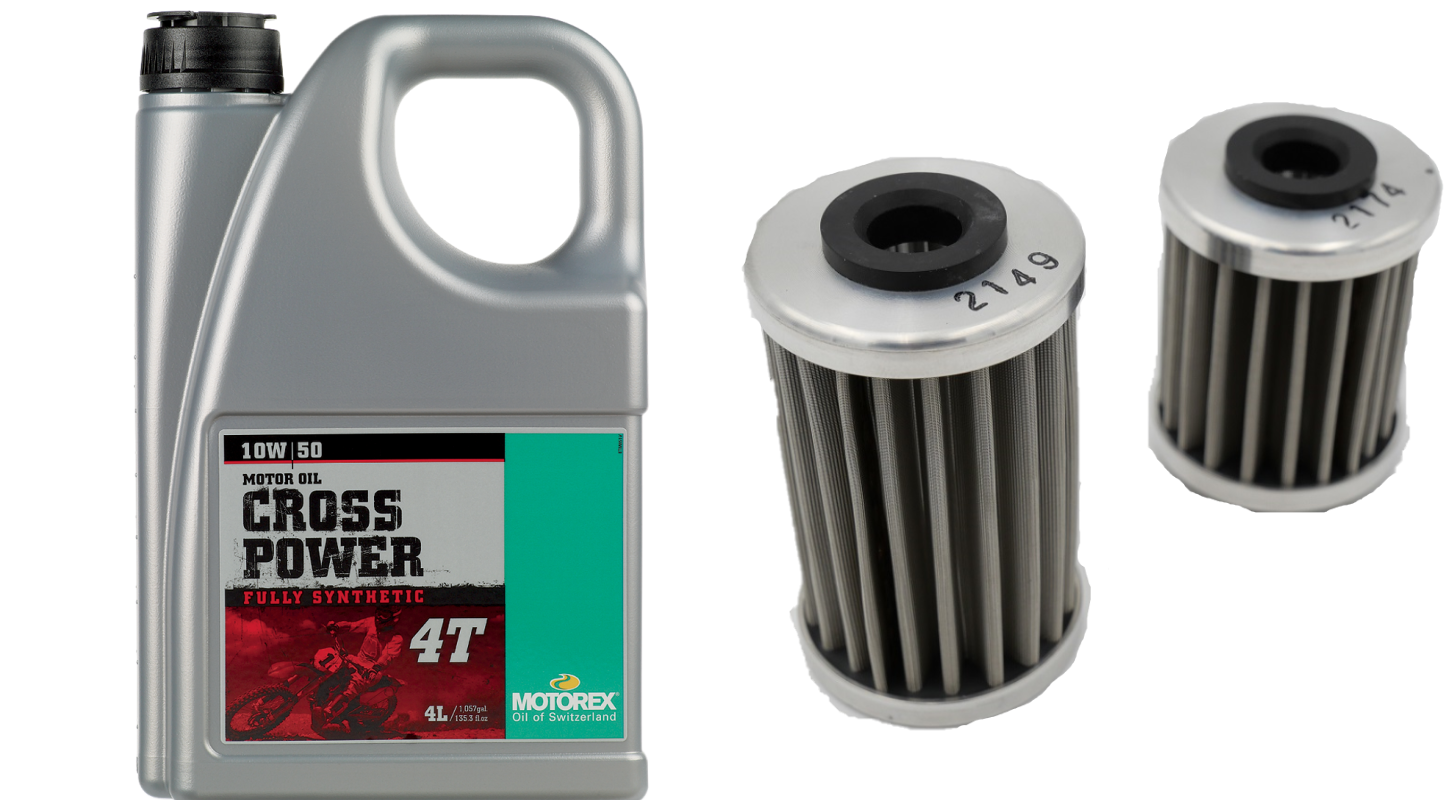

  • Your choice of either 2x Scott's Stainless Steel (2149 & 2174) or HiFlo Paper filter (HF155 & HF651)

  • Your choice of either 1x4 Liter/2x1 Liter Jug of 10W50 OR 10W60 MotorEX Cross Power Oil

Why Motorex's Cross Power is the best:

Motorex's Cross Power is a fully synthetic high-performance 4-stroke engine oil, especially developed for Off-Road motorcycles. When this oil was developed, in close cooperation with racing teams and motorcycle manufacturers, attention was paid to the specific requirements of Off-Road use. JASO MA2 approval guarantees the fault-free functioning of wet multi-disc clutches.

Motorex's Cross Power Oil - Features

  • Especially formulated for the toughest Off-Road use
  • Racing quality
  • Extremely high thermal and shear stability
  • Catalytic converter tested
  • Ideal for wet multi-disc clutches (JASO MA2 approval)
  • Fully synthetic
  • Meets the following specifications
    • API SL
    • API SM
    • API SN
    • JASO MA2
    • KTM LC4 2007+

Why Scotts is the best:

Adventure motorcycle engines are valuable to take on water, that's just the nature of the sport. Paper filters when they get wet will reduce and eventually block the oil flow which causes oil starvation for vital parts of the engine. This is usually the number one reason for engine damage when a bike takes on water (through the exhaust or intakes). Scotts stainless steel filter will continue to filter oil even when the oil is contaminated by water. This buys the rider time to get to a point that the oil can be changed.

These filters are reusable. They can be washed and put back into the engine.

Scott's Stainless Steel Filter - Features

  • 10 Years of Engineering, manufacturing and testing
  • Technical information and assistance available directly from the manufacturer
  • 3 Pleat welded seam (best sealing and strongest
  • Passes ASTMF316 Test for 35 Microns
  • Certified "Bubble Point" testing on media
  • Passes 24 hour chemical resistance test
  • Custom woven media
  • Able to withstand 600 degrees F.
  • Full Flow bypass with progressive valving. No need to disassemble for cleaning.
  • Magnetic pre-filtering (all spin-on models)
  • Sonic cleaning available from the manufacturer
  • Used by the most factory backed riders
  • Labeled "4-Stroke insurance" by MotoCross Action Magazine
  • Rated "9" by Dirt Rider Magazine
  • Given "Full Throttle" rating my Fast By Design
  • Applications for just about everything that rolls, floats or glides across the snow.
  • Manufactured in the USA

Superior Filtration:
This should be the last oil filter you will ever buy! Made from laser cut, medical grade, 304 stainless steel micronic filter cloth, this filter provides 200% more filter area in many cases. Most good paper filters will pass particles in the 90 to 95 micron range, and some tested, as much as 300 microns. Sand is about 125 microns and a white blood cell approximately 25 microns. Our stainless filter catches items down to 35 microns "absolute", which is about 3 times better than most good paper or brass filters. The pleat seam is welded, able to withstand up to 600 degrees in our filter, not glued, like paper filters.

Cleanable and reusable:
Simply remove the filter, rinse in clean solvent and replace it, you're done. The filter can be cleaned with solvent, kerosene, aerosol carburetor cleaner, or any other degreasing agent, even common dish soap. You can even blow air through the filter from the inside out to remove any small particles or cleaning agent from the screen if you so desire.

Consistent flow under all conditions:
Stainless steel will stand up to the stress of heat, high pressure and physical handling much better than paper or brass. This filter maintains consistent flow under all conditions including cold start ups and or under extreme heat. A one inch square of this micron filter material will flow 1.9 gallons of 90 weight oil per minute at only 1 psi pump pressure (70 degrees F). Our typical filter size is 30 sq. in. which equals the flow of 57 gallons per minute. Standard paper filters do not flow well when the oil is cold, often causing the bypass valve to open allowing unfiltered oil to enter your engine, ugh!

Unaffected by Water, Heat and Pressure:
This filter is capable of withstanding extremely high pressure and flow rates. It is also unaffected by Water, Heat and Pressure, unlike standard paper filter material which swells in the presence of water, closing off filter pores and reducing flow.

Early Detection:
By allowing you to inspect the debris that is in the filter you can monitor your engines condition, avoiding minor and or catastrophic failures.

What is a Micron?
A micron is one thousandth of a millimeter. That's about .00003937 inches. Fine sand can be as small as 62 microns thick. Our filter will not allow any particle over 35 microns to pass through this filter, that's some pretty small stuff that's being caught.

So who uses this type of filtration?
This high tech filter technology is widely used in all types of auto racing including NASCAR, Indy type cars, Formula 1 and in the Aerospace industry where filtration is of the utmost importance.

Things to think about:
Next time you are fanning your clutch think about all that tiny debris that is created from the clutch and gears meshing together, spinning around in your motor's vital parts. If you really care about the life of your motor and consider the cost of loss of time associated with a current day 4-stroke motor, then you need one of these filters. It's even transferrable in some cases to your next bike. I used the same filter in my last three bikes, and it's still like brand new, there's simply nothing to wear out.

Environmental benefits
In addition to all the other benefits, our filter helps keep the land fills free of old used filters.

Option name MFR. Part Number SKU Stock
  Paper Filter / (10w50) 2x1L 308241 & HF155 & HF651 OIL-KIT-MX-10W50-2X1-PF In stock
  Paper Filter / (10w50) 1x4L 305692 & HF155 & HF651 OIL-KIT-MX-10W50-1X4-PF In stock
  Paper Filter / (10w60) 2x1L 308242 & HF155 & HF651 OIL-KIT-MX-10W60-2X1-PF In stock
  Paper Filter / (10w60) 1x4L 306217 & HF155 & HF651 OIL-KIT-MX-10W60-1X4-PF In stock
  Stainless Steel Filter / (10w50) 2x1L 308241 & 2149 & 2174 OIL-KIT-MX-10W50-2X1-SSF Available
  Stainless Steel Filter / (10w50) 1x4L 305692 & 2149 & 2174 OIL-KIT-MX-10W50-1X4-SSF Available
  Stainless Steel Filter / (10w60) 2x1L 308242 & 2149 & 2174 OIL-KIT-MX-10W60-2X1-SSF Available
  Stainless Steel Filter / (10w60) 1x4L 306217 & 2149 & 2174 OIL-KIT-MX-10W60-1X4-SSF Available
