Description

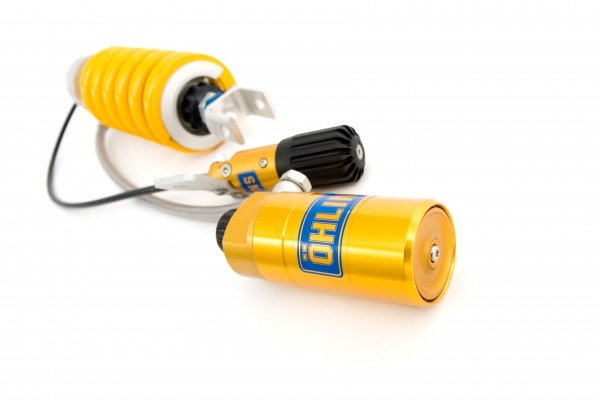

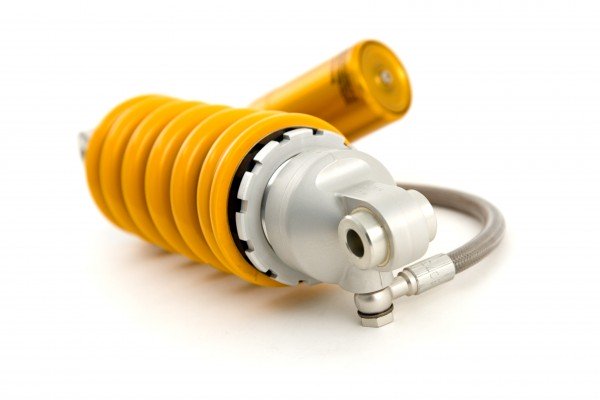

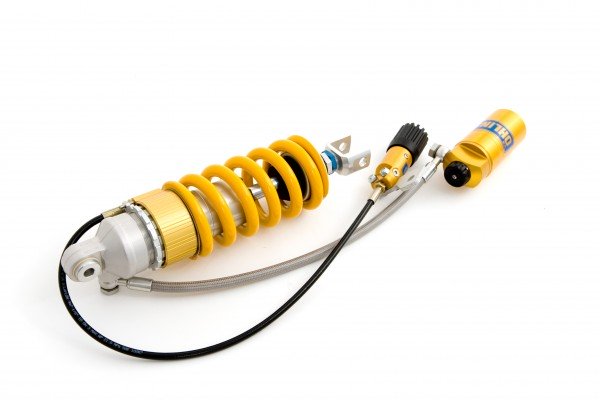

YA 535
With adjustable compression and rebound damping, you can change the behavior of the shock to suit your taste.
The benefit of an external reservoir is that the shock has more oil, keeping it cooler in extreme conditions and allowing for additional adjustability.
The hydraulic preload adjuster will allow you to make preload changes without a tool to accommodate weight variations.
Type Code: S46HR1C1S
Tech
- Adjustable Rebound and Compression damping
- Monotube Shock and External Hose mounted Reservoir
- Hose Mounted Hydraulic Preload Adjustment
- High Pressure Nitrogen Gas Charged
- STX Single Tube design
- 46mm Piston Diameter
- Adjustable Preload w/ tool
- Top Level Comfort, Rideability, and Performance
- Hard Anodized - Precision CNC-Machined Components
- Low-friction Shaft / Seal Head design
- Fully Serviceable and Repairable
Spec. by Application for YA 535
Application: 2014-2020 Yamaha MT-09 (FZ-09)
Notes:
Length: 329 mm
Stroke: 65 mm
Fitted Spring: 01092-31 (Y)
Mounting Position: Rear Mono
Type code: S46HR1C1S
Product Family: STX 46 Street
Application: 2015-2017 Yamaha Tracer 900/Tracer 9 (FJ-09)
Notes:
Length: 329 mm
Mounting Length: 329 mm
Stroke: 65 mm
Spring Rate: 95 n/m
Recommended Ohlins Oil: 01309
Fitted Spring: 01092-31 (Y)
Mounting Position: Rear Mono
Type code: S46HR1C1S
Product Family: STX 46 Street
Application: 2016-2021 Yamaha XSR 900
Notes:
Length: 329 mm
Stroke: 65 mm
Fitted Spring: 01092-31 (Y)
Mounting Position: Rear Mono
Type code: S46HR1C1S
Product Family: STX 46 Street
Fitment
Fitment
This item may fit other vehicles not listed here.| Yamaha | MT-09 (FZ-09) | 2014-2020 |
| Yamaha | Tracer 900/Tracer 9 (FJ-09) | 2015-2017 |
| Yamaha | XSR 900 | 2016-2021 |
Documents
ÖHLINS Supporting Documents
Part Numbers and Availability
| Option name | MFR. Part Number | Barcode | SKU | Stock |
| YA 535 | YA 535 | OHLINS-YA_535 | In stock |
