Xtrig PHDS Kit - KTM & Husqvarna - 50100008

The PHDS (Progressive Handlebar Dampening System) is a system supported by elastomer dampers designed to absorb engine and chassis vibrations.

The system also dampens the forces acting on the handlebars in a horizontal and vertical direction, maintaining steering precision. The handlebars can be adjusted in several different positions when the PHDS is mounted.

Features

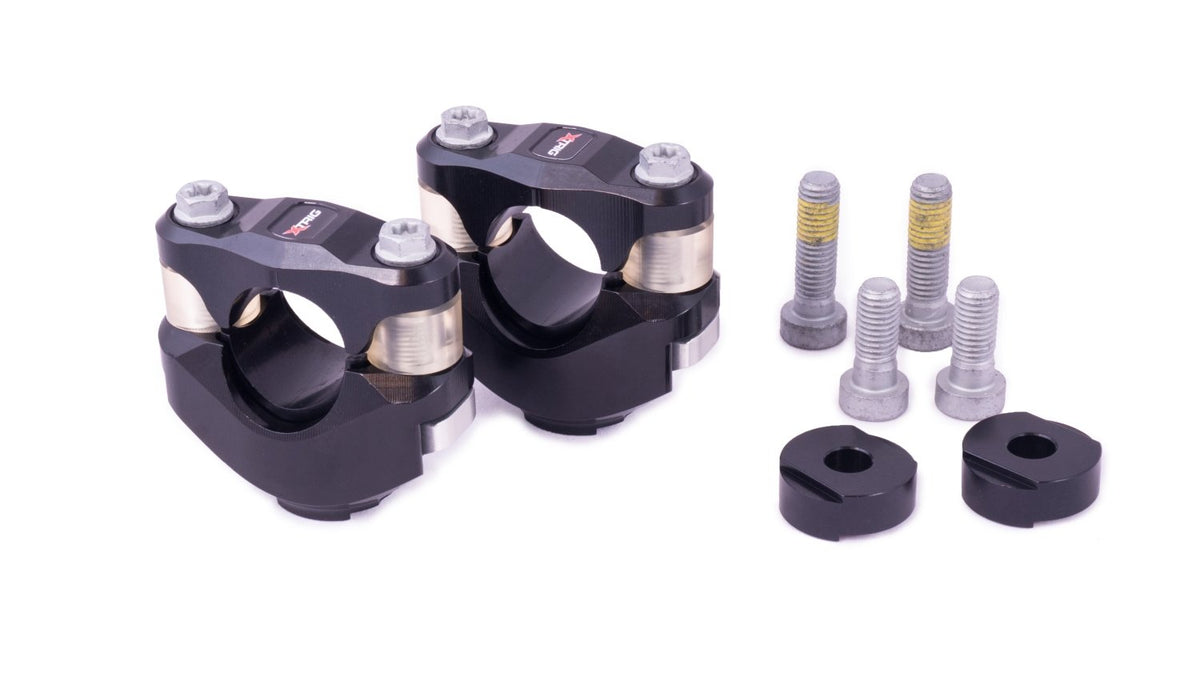

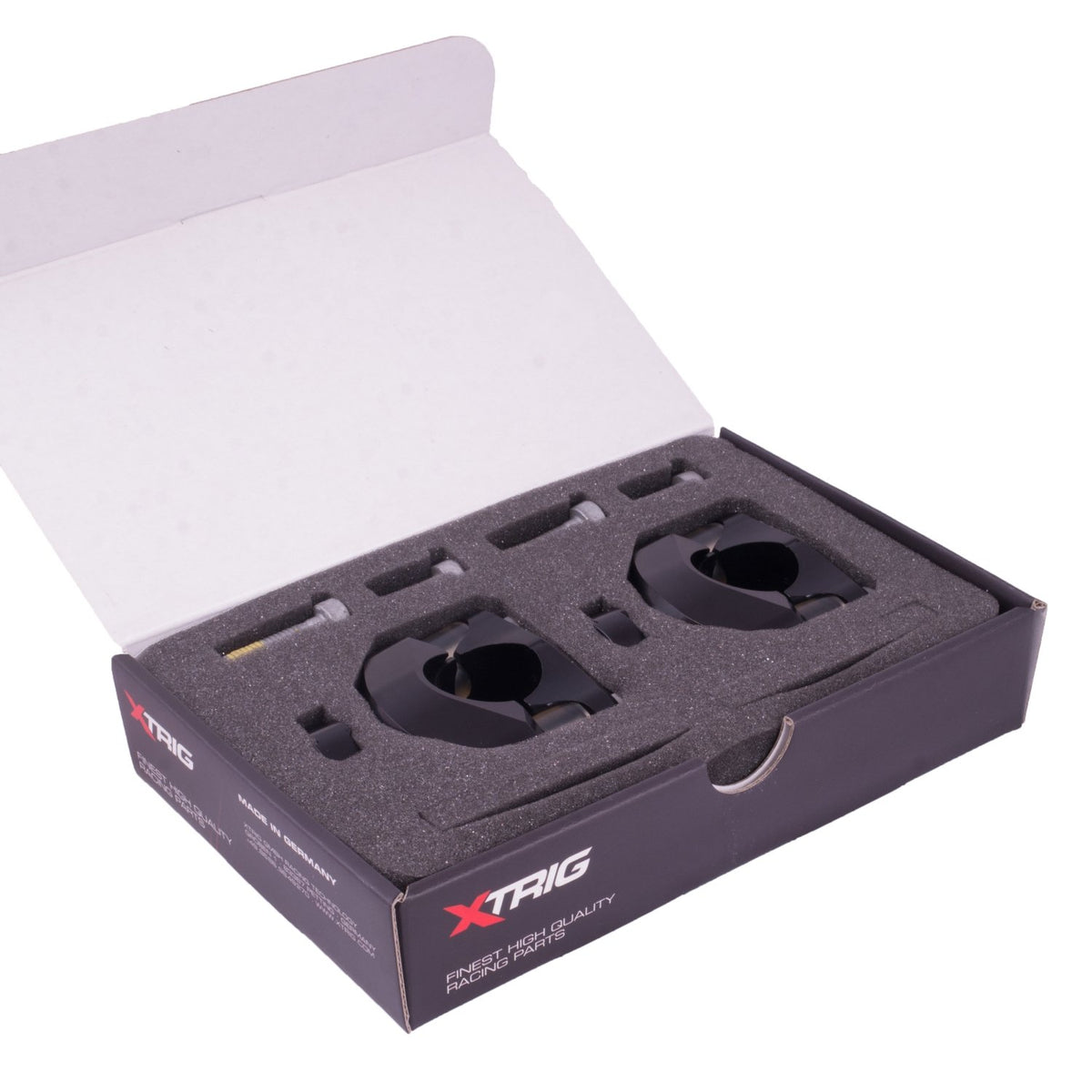

• Sold as a set
• Comes with optional bar risers
• Comes with medium rubber (yellow). Soft (green) and Harder (Red) rubbers available separately
• Color is black anodized
• For 28.6mm (1-1/8") handle bars (OEM for KTM and Husqvarna)
• M10 bolts (OEM for KTM and Husqvarna)
• Includes 10mm riser and screws; risers are optional

• Clamps have the same built-in offset as stock. They can be rotated 180 degrees, for a few milometers of forward or backward offset
• Compatible with all TripleClamp Moto steering damper mounts for 790, 890, 990, 950, 1090, 1190 and 1290 and Norden 901

Fitment

• KTM 790 /890 /1090/1050 /1190 /1290 all years (with or without our steering damper mount kit for those bikes)
• KTM 950/950 Adventure when used with TripleClamp Moto's steering damper mount.
• KTM 2008-18 KTM 690 Enduro R and SM
• KTM 85 to 530 cc ( year 2000+)
• Husaberg 125 to 570 (2003+)
• Husqvarna 85 to 501  (2014 - 2023)
• Husqvarna Norden 901
• Beta RR 2T/4T (MY 2013 - 2026)

• Beta RX 300 / RX 450 (MY 2024 - 2026)

• Beta Xtrainer (MY 2015 - 2020)
• fits on Xtrig's M10 triple clamps (old version only)

Xtrig part number: 50100008 / KTM Powerparts equivalent: SXS07125200
