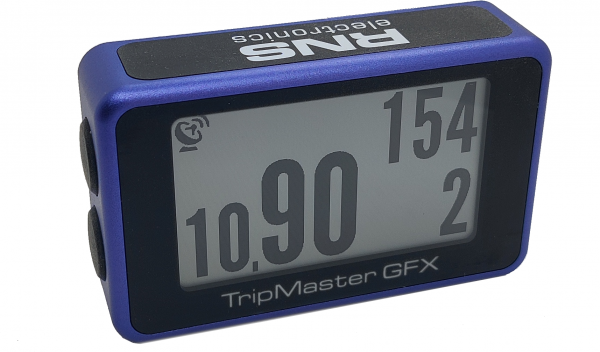

RNS TripMaster GFX v2 Pro


TripMaster: GFX v2 Pro
Sale price$716.95 CAD
Accepting orders (not in-stock)
Expect delay.

Pickup available at Supplier

Usually ready in 2-4 days


  • High contrast transflective graphics LCD
    • 2.7” diagonal
    • 400x240 pixels, 172ppi
    • LED backlight
    • 180° viewing angle in X+Y axis
  • Perfect readability under bright sunlight and dust
  • CNC machined and anodized aluminum casing
  • Internal GPS antenna + receiver

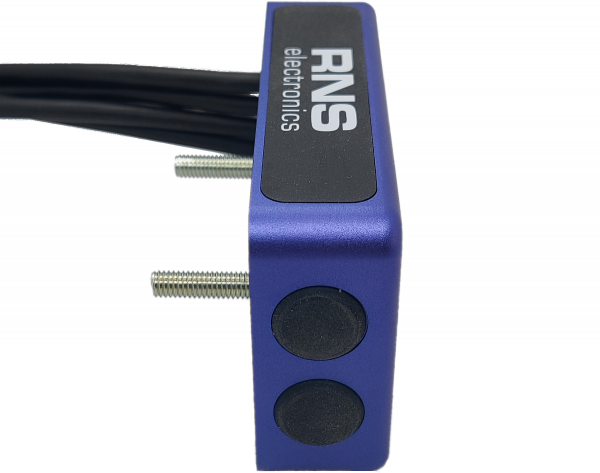

  • 2 click-feedback rubber buttons on the left side for easy pressing even when wearing gloves
  • Matte framed lens to limit glare
  • Internal Lithium-Polymer self-charging backup battery
  • 4 colour-coded cables with M8 connectors
  • Water- and dustproof design
  • Smaller footprint than the traditional TripMaster XL4
  • Plug and Play with old cables, accessories and mounting positions


  • Wheel sensor + internal GPS compatibility
  • Wheel Size adjustable in millimeters
  • Self-calibrating wheel size
  • GPS compensation factor adjustable between -10% and +10%
  • Numerous modes individually configurable
    • 2x trips from wheel and GPS viewable in 10m or 100m resolution
    • 2x speed displays from wheel and GPS
    • Statistics for maximum and average speeds
    • CAP heading from GPS
    • Atomic clock from GPS with UTC offset
    • Stage moving timers
    • Combined screens for Trip, Speed and CAP together
    • Repeater function to show waypoint information, including arrow, from a connected Garmin GPS device (cable sold separately)
  • Intuitive settings menu accessible from any mode
  • Transition pages with symbols and icons when switching between modes
  • Lifetime and resettable oil odometers
  • Invertible LCD image with dim backlight for pleasant reading in the dark
  • Software updateable via USB


  • Stainless-Steel Front wheel sensor (M8 screw type)
  • Neodymium Magnet
  • Power lead

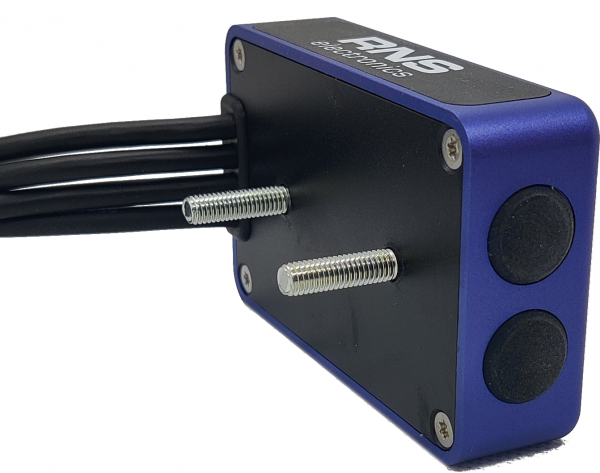

  • Mounting parts: grommets, spacers and nuts


  • 84mm x 52mm x 22mm (WxHxD)
  • 250g


NOTE: this "Pro" version of the GFX v2 features an internal built-in GPS antenna and receiver.

Although this device is compliant with the rules and regulations of many events, including FIM Cross-Country-Rallies World Championship rounds, please check beforehand with your event organizer to ensure that you are allowed to use this GPS equipped device!

      Option name MFR. Part Number SKU Stock
        GFX v2 Pro RNS05 RNS05 Available
