Description

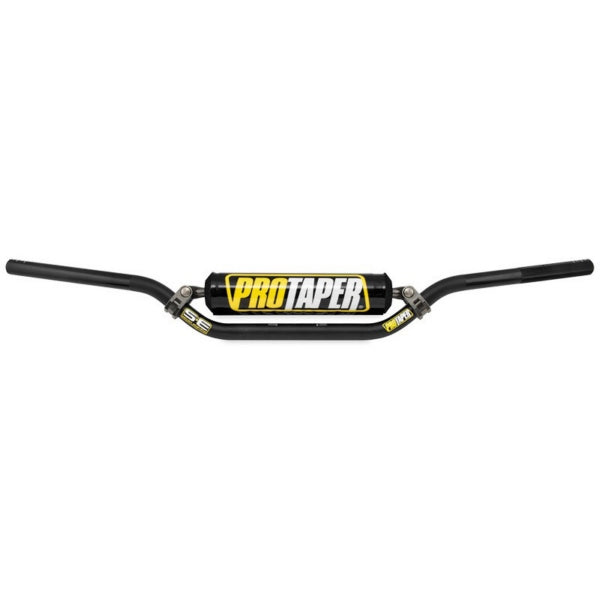

The SE (Seven Eighths) Handlebar is ProTaper’s ?" diameter bar designed for riders who still prefer the feel and stability of a crossbar.
- Made from proprietary 5mm 2000 series T6 aluminum alloy for superior tensile and yield strength
- Cold-forged aluminum crossbar
- High-tech, stress-relieved, shot-peened and anodized finish for unmatched durability
- Clutch-side knurling provides maximum grip adhesion
- Chemically applied cut lines and alignment grid are scratch- and peel-resistant
- Plastic end plugs keep the elements out and provide a stronger base for grip ends
- Weighs only 1.8 lbs. (820 grams) without pad
- Bar pad included
Transworld Motocross awarded the SE Handlebar a perfect “10” score, stating that it “has set the standard for aluminum handlebars.”
- Diameter: 7/8"
- Total Width: 800 mm
- Total height: 77 mm
- Clamp Area Width: 188 mm
- Elevation: 40 mm
- Material: Aluminum
- Color: Black
- Handlebar pads included: Yes
ProTaper Size Chart
ProTaper Handlebars Size Chart
| Model | Width | Height | Rise | Clamp Area | Sweep | Control Area |
|---|---|---|---|---|---|---|
| ATV High | 813 mm | 160 mm | 104 mm | 236 mm | 100 mm | 199 mm |
| ATV Low | 813 mm | 140 mm | 88 mm | 228 mm | 84 mm | 206 mm |
| ATV Mid | 813 mm | 140 mm | 93 mm | 237 mm | 76 mm | 206 mm |
| Carmichael | 800 mm | 77 mm | 40 mm | 188 mm | 56 mm | 206 mm |
| CR High | 800 mm | 95 mm | 67 mm | 233 mm | 60 mm | 186 mm |
| CR Low | 800 mm | 71 mm | 55 mm | 231 mm | 68 mm | 195 mm |
| CR Mid | 800 mm | 82 mm | 56 mm | 230 mm | 57 mm | 195 mm |
| Factory Suzuki | 800 mm | 92 mm | 61 mm | 233 mm | 47 mm | 190 mm |
| Henry/Reed | 800 mm | 92 mm | 60 mm | 225 mm | 57 mm | 186 mm |
| Honda Mini | 730 mm | 730 mm | 89 mm | 166 mm | 50 mm | 195 mm |
| Kawasaki Mini | 730 mm | 117 mm | 81 mm | 176 mm | 50 mm | 186 mm |
| KLX110/DR-Z110 | 800 mm | 143 mm | 123 mm | 184 mm | 44 mm | 200 mm |
| KTM 50 | 648 mm | 80 mm | 72 mm | 157 mm | 44 mm | 167 mm |
| KX High | 800 mm | 82 mm | 53 mm | 223 mm | 73 mm | 195 mm |
| KX Low | 800 mm | 71 mm | 54 mm | 231 mm | 60 mm | 195 mm |
| Raptor | 770 mm | 143 mm | 115 mm | 161 mm | 87 mm | 206 mm |
| RM High | 800 mm | 82 mm | 53 mm | 223 mm | 73 mm | 195 mm |
| RM Low | 800 mm | 74 mm | 54 mm | 228 mm | 55 mm | 189 mm |
| School Boy High | 715 mm | 88 mm | 61 mm | 144 mm | 45 mm | 195 mm |
| School Boy Low | 715 mm | 78 mm | 51 mm | 137 mm | 47 mm | 195 mm |
| School Boy Pro | 745 mm | 80 mm | 72 mm | 200 mm | 52 mm | 200 mm |
| Suzuki Mini | 730 mm | 102 mm | 80 mm | 172 mm | 50 mm | 186 mm |
| SX Race | 800 mm | 87 mm | 54.5 mm | 216 mm | 54 mm | 195 mm |
| Trials High | 815 mm | 113 mm | 84 mm | 173 mm | 49 mm | 206 mm |
| Trials Mid | 815 mm | 106 mm | 77 mm | 173 mm | 50 mm | 200 mm |
| Windham/RM Mid | 800 mm | 99 mm | 69 mm | 243 mm | 54 mm | 189 mm |
| XR 50 | 724 mm | 171 mm | 152 mm | 184 mm | 44 mm | 161 mm |
| Yamaha Mini | 730 mm | 99 mm | 70 mm | 160 mm | 58 mm | 186 mm |
| YZ High | 800 mm | 94 mm | 53 mm | 222 mm | 54 mm | 195 mm |
| YZ Low | 800 mm | 67 mm | 48 mm | 219 mm | 70 mm | 195 mm |
| Model | Width | Height | Rise | Clamp Area | Sweep |
|---|---|---|---|---|---|
| Adventure | 804 mm | 123 mm | 90 mm | 109 mm | 82 mm |
| Adventure High | 804 mm | 174 mm | 141 mm | 109 mm | 82 mm |
| Carmichael | 800 mm | 77 mm | 40 mm | 195 mm | 55 mm |
| CR Hi | 800 mm | 95 mm | 71 mm | 204 mm | 60 mm |
| Factory Suzuki/KTM | 800 mm | 92 mm | 62 mm | 217 mm | 47 mm |
| Henry/Reed | 800 mm | 92 mm | 66 mm | 206 mm | 57 mm |
| Husqvarna Stock | 811 mm | 80 mm | 39.5 mm | 92 mm | 51 mm |
| Pastrana MX/RM Low | 800 mm | 74 mm | 56 mm | 203 mm | 55 mm |
| Steering Damper Low | 800 mm | 69 mm | 62 mm | 217 mm | 47 mm |
| SX Race | 800 mm | 87 mm | 54.5 mm | 216 mm | 54 mm |
| Windham/RM Mid | 800 mm | 99 mm | 74 mm | 219 mm | 53 mm |
| Woods Hi | 800 mm | 97 mm | 69 mm | 211 mm | 61 mm |
| YZ Hi | 800 mm | 84 mm | 56 mm | 202 mm | 52 mm |
| Model | Width | Height | Rise | Clamp Area | Sweep |
|---|---|---|---|---|---|
| Metal Mulisha MX | 800 mm | 92 mm | 61 mm | 206 mm | 57 mm |
| Deegan FMX | 800 mm | 108 mm | 70 mm | 236 mm | 56 mm |
| Twitch FMX | 800 mm | 121 mm | 70 mm | 236 mm | 55 mm |
| Model | Width | Height | Rise | Clamp Area | Sweep |
|---|---|---|---|---|---|
| Carmichael | 800 mm | 77 mm | 36 mm | 195 mm | 55 mm |
| CR Hi | 800 mm | 95 mm | 67 mm | 204 mm | 60 mm |
| CR Mid | 800 mm | 82 mm | 56 mm | 230 mm | 57 mm |
| Factory Suzuki/KTM | 800 mm | 92 mm | 62 mm | 217 mm | 47 mm |
| Henry/Reed | 800 mm | 92 mm | 61 mm | 206 mm | 57 mm |
| KX Hi | 800 mm | 108 mm | 70 mm | 236 mm | 56 mm |
| Pastrana FMX | 775 mm | 121 mm | 70 mm | 236 mm | 55 mm |
| Pastrana MX/RM Low | 800 mm | 74 mm | 54 mm | 203 mm | 55 mm |
| SX Race | 800 mm | 87 mm | 54.5 mm | 216 mm | 54 mm |
| Universal Low | 800 mm | 71 mm | 38 mm | 223 mm | 55 mm |
| Windham/RM Mid | 800 mm | 99 mm | 70 mm | 219 mm | 53 mm |
| Woods Hi | 800 mm | 95 mm | 66 mm | 211 mm | 57 mm |
| Woods Low | 800 mm | 71 mm | 66 mm | 211 mm | 60 mm |
| YZ Hi | 800 mm | 84 mm | 53 mm | 202 mm | 52 mm |
| Model | Width | Height | Rise | Clamp Area | Sweep |
|---|---|---|---|---|---|
| ATV Low | 813 mm | 95 mm | 67 mm | 229 mm | 60 mm |
| ATV Mid | 813 mm | 108 mm | 70 mm | 236 mm | 56 mm |
| ATV Hi | 813 mm | 121 mm | 70 mm | 236 mm | 55 mm |
| Raptor | 813 mm | 143 mm | 115 mm | 236 mm | 87 mm |
| Model | Width | Height | Rise | Clamp Area | Sweep |
|---|---|---|---|---|---|
| Mini Low | 775 mm | 80 mm | 53 mm | 216 mm | 50 mm |
| Mini Hi | 775 mm | 105 mm | 76 mm | 221 mm | 52 mm |
| Model | Width | Height | Rise | Clamp Area | Sweep |
|---|---|---|---|---|---|
| Honda Mini | 686 mm | 114 mm | 89 mm | 166 mm | 45 mm |
| KTM 50 | 648 mm | 80 mm | 72 mm | 157 mm | 44 mm |
| Schoolboy High | 673 mm | 85 mm | 60 mm | 102 mm | 40 mm |
| Schoolboy Low | 673 mm | 75 mm | 51 mm | 137 mm | 42 mm |
| Schoolboy Pro | 699 mm | 79 mm | 72 mm | 145 mm | 46 mm |
