MTBM 1954

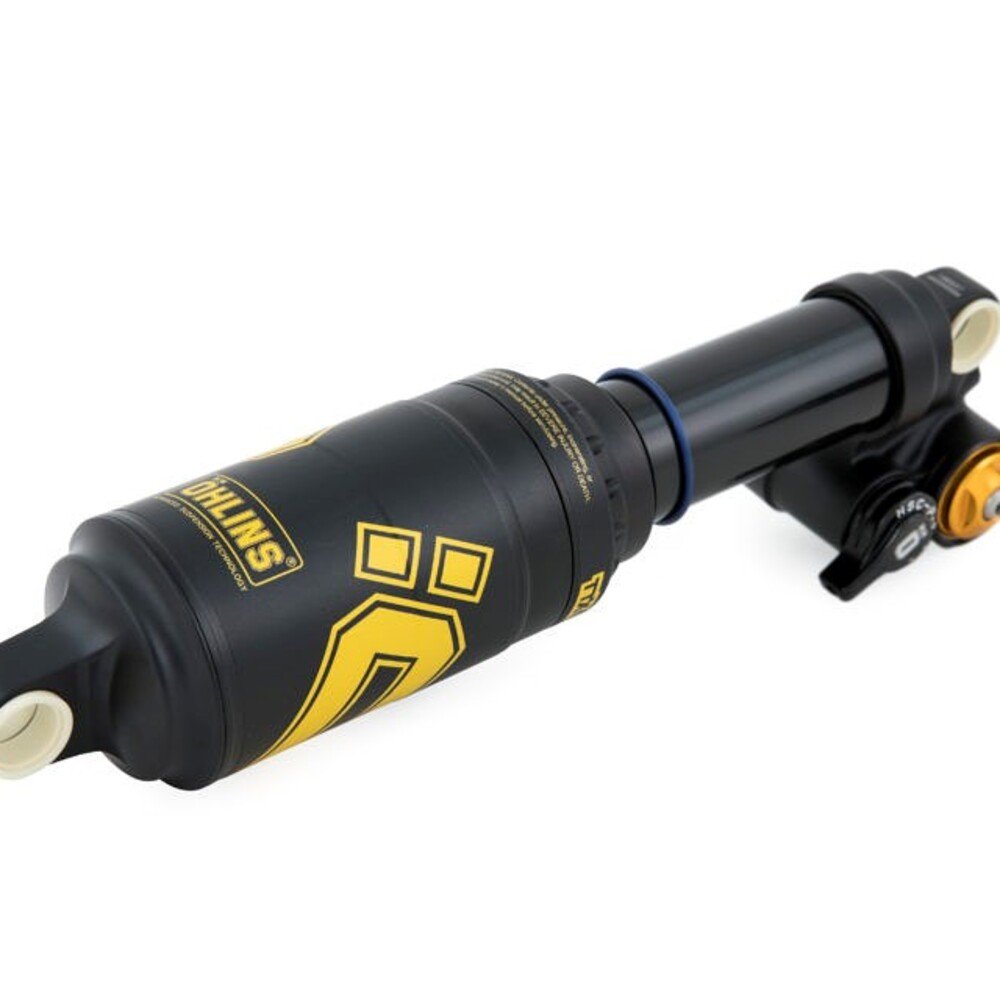

A high performance, robust air-sprung shock; the TTX1Air offers the same performance as our TTX2Air but in a more compact single can package; for bikes with a more linear shock curve with less need for bigger air volume and a lower level of progressivity.

The TTX1Air also features a new slimmer fit end-eye design to fit more frame designs.

The TTX1Air's compact design weighs 60 grams less than the TTX2Air for a 210x55mm shock.

A specific wiper seal and air sleeve lubrication reduces friction and delivers consistent performance between service intervals, Öhlins have also increased the maximum air pressure to handle a wider range of riders and e-MTB requirements.

The TTX1Air combines the superior damping function of the TTX system together with a new air spring design; delivering both improved performance as well as strength.

Öhlins brought the TTX concept into the MTB market and the technology set a new standard in damping function.

TTX-technology adjusts the pressure area on the shims instead of increasing preload, allowing more damping adjustment for added control; without resulting in an unwanted harsh ride feel.

The TTX1Air improves on an already proven package in terms of damping performance and making personalised tuning simple.

The metric system design has also allowed an increased bushing overlap, delivering a robust design with improved side load management.

A versatile and ideal choice from more linear trail bikes through to eMTB applications, especially for riders who are looking for a lighter or slimmer shock and also seek the possibility to tune it to their bike and riding style.

Type Code: MTBM 1954
