FCX 1302

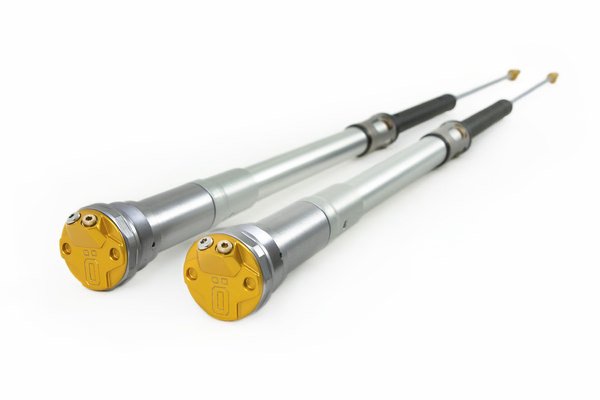

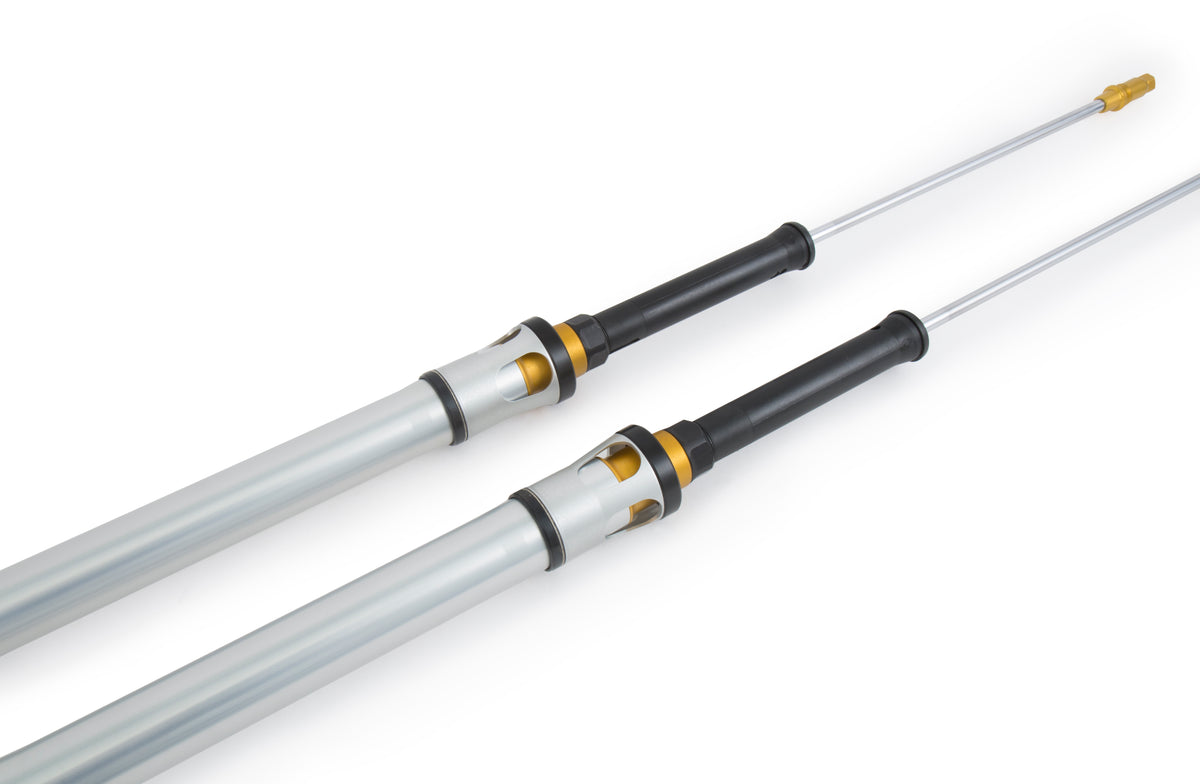

If you want to keep your front fork legs but still upgrade to Öhlins TTX, just pull out the standard inserts and pop in this powerful TTX22 cartridge kit from Öhlins R&D.

The same kit that is fitted in the Öhlins Front Fork is based on the Öhlins TTX-technology is also available as a stand-alone cartridge kit for all major models.

The TTX technology brings a positive pressure balance in the system, thanks to the twin tube technology.

The gas pressurized dividing piston inside pushes the hydraulic fluid back into the low pressure side and the end result is better improved performance and no more cavitation.

The kit is lighter thanks to an 8 mm steel hollow shaft and the main piston diameter is 22 mm.

All other details are made in aluminum.

Settings are constantly improved and a new one-way rebound valve was recently introduced which improves the performance and gives better front wheel control.

Available for most major models on the market.

Note!

This kit requires springs and oil which are sold separately.

Type Code: T22DR1C1

Tech

• Cartridge kit with patented TTX design
• Gas pressurized damping system for immediate damping response
• Easy installation in OE front forks

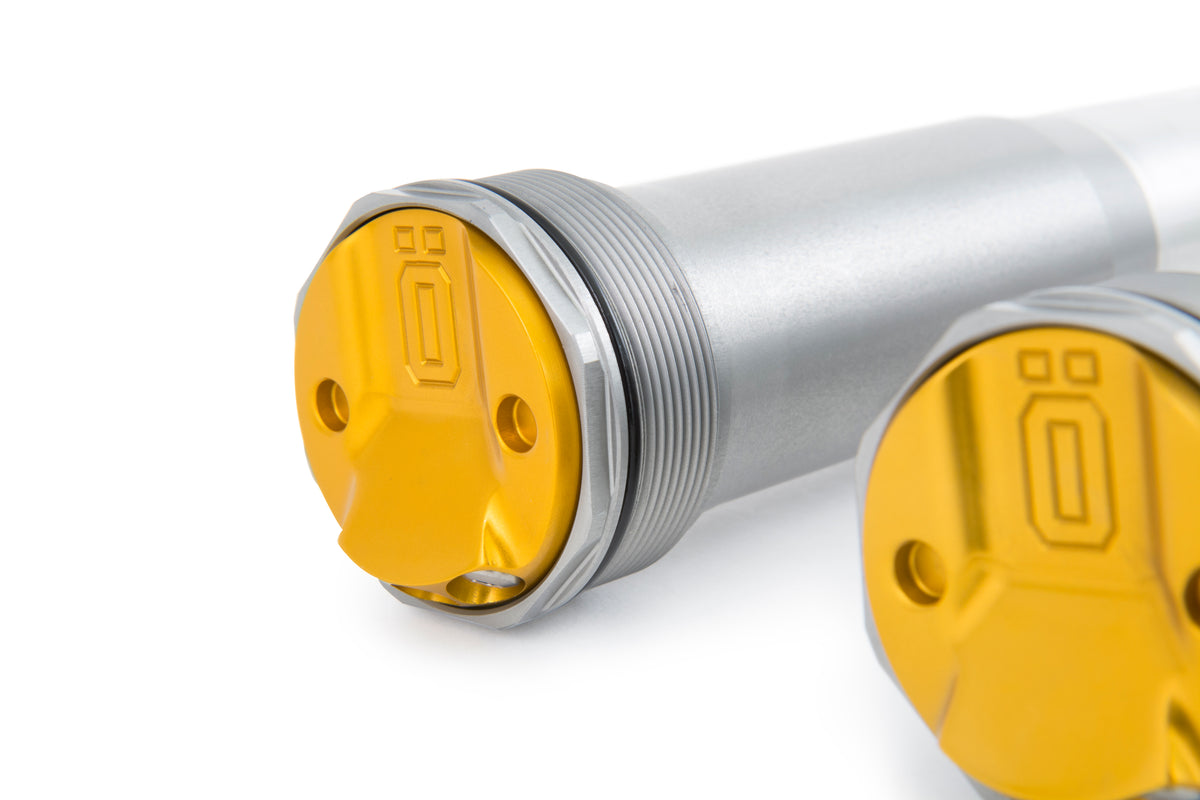

• External compression adjuster
• External rebound adjuster
• Improved hydraulic stops to improve bottoming resistance
• Springs, oil and installation tools sold separately.
• New top out rubber for smoother top out feeling
• Available for all major MX and Enduro models

Spec. by Application for FCX 1302

Fitment

Fitment

This item may fit other vehicles not listed here.

Beta	RR 2T 125	2020-2023
Beta	RR 2T 200	2020-2023
Beta	RR 2T 250	2020-2023
Beta	RR 2T 300	2020-2023
Beta	RR 4T 350	2020-2023
Beta	RR 4T 390	2020-2023
Beta	RR 4T 430	2020-2023
Beta	RR 4T 480	2020-2023
