FCX 1301

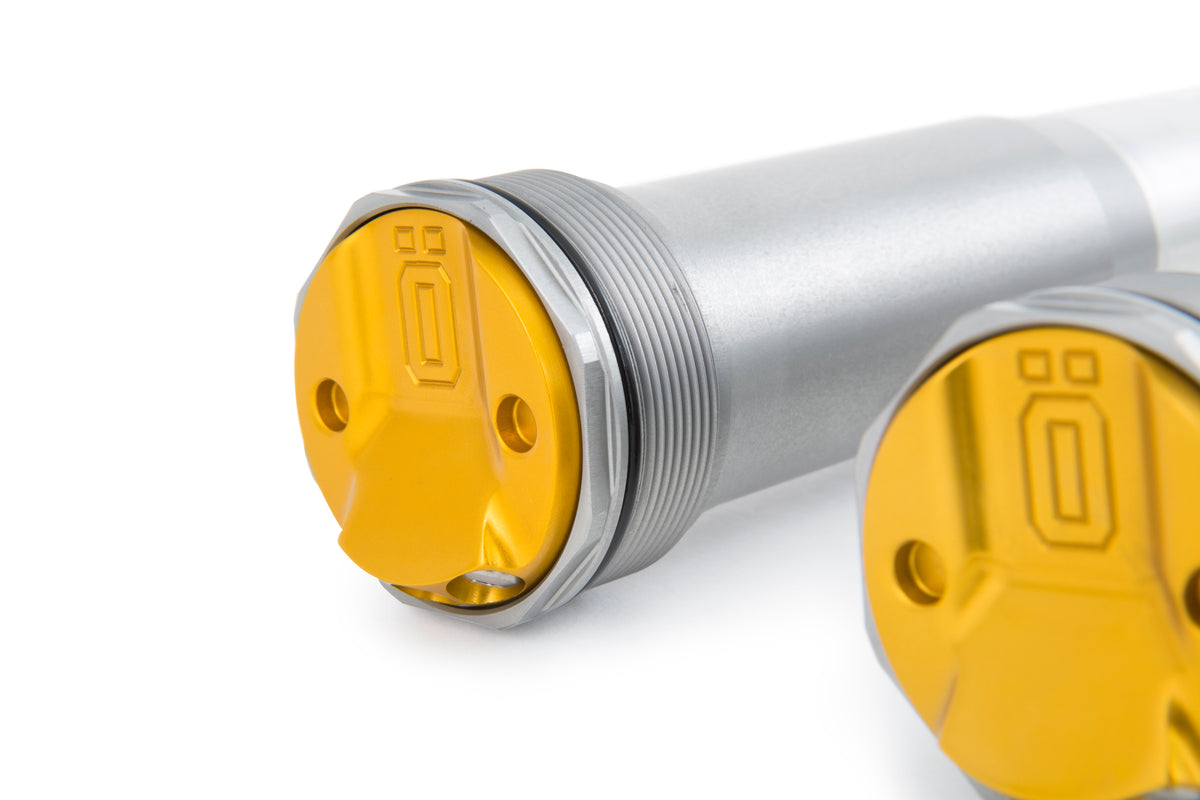

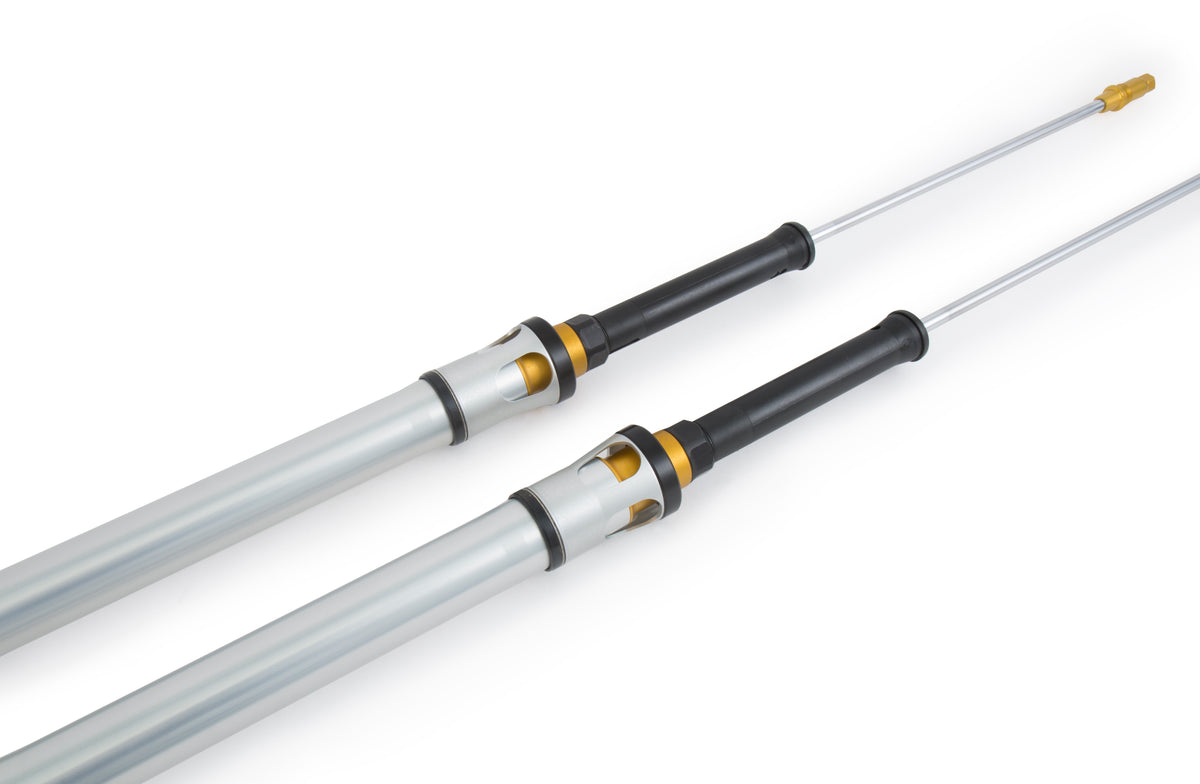

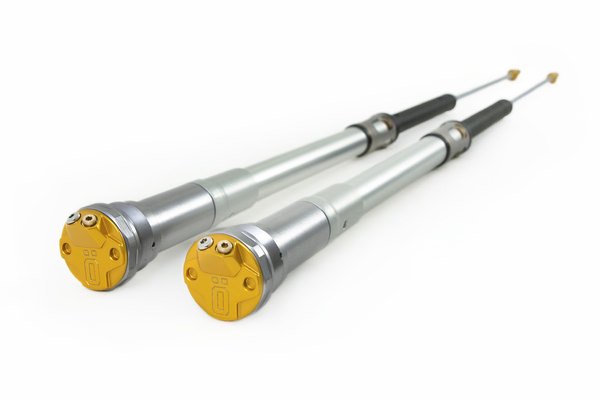

If you want to keep your front fork legs but still upgrade to Öhlins TTX, just pull out the standard inserts and pop in this powerful TTX22 cartridge kit from Öhlins R&D.

The same kit that is fitted in the Öhlins Front Fork is based on the Öhlins TTX-technology is also available as a stand-alone cartridge kit for all major models.

The TTX technology brings a positive pressure balance in the system, thanks to the twin tube technology.

The gas pressurized dividing piston inside pushes the hydraulic fluid back into the low pressure side and the end result is better improved performance and no more cavitation.

The kit is lighter thanks to an 8 mm steel hollow shaft and the main piston diameter is 22 mm.

All other details are made in aluminum.

Settings are constantly improved and a new one-way rebound valve was recently introduced which improves the performance and gives better front wheel control.

Available for most major models on the market.

Note!

This kit requires springs and oil which are sold separately.

Type Code: T22DR1C1

Tech

• Cartridge kit with patented TTX design
• Gas pressurized damping system for immediate damping response
• Easy installation in OE front forks
• External compression adjuster
• External rebound adjuster
• Improved hydraulic stops to improve bottoming resistance
• Springs, oil and installation tools sold separately.
• New top out rubber for smoother top out feeling
• Available for all major MX and Enduro models

Spec. by Application for FCX 1301

Fitment

Fitment

This item may fit other vehicles not listed here.

Gas Gas	EC 250	2021-2023
Gas Gas	EC 250F	2021-2023
Gas Gas	EC 300	2021-2023
Gas Gas	EC 350F	2021-2023
Husqvarna	FE 250	2019-2023
Husqvarna	FE 350	2019-2023
Husqvarna	FE 450	2019-2023
Husqvarna	FE 501	2019-2023
Husqvarna	TE 150	2019-2023
Husqvarna	TE 250	2019-2023
Husqvarna	TE 300	2019-2023
KTM	150 EXC	2019-2023
KTM	150 XC-W	2019-2023
KTM	250 EXC	2019-2023
KTM	250 EXC Six days	2019-2023
KTM	250 EXC-F	2019-2023
KTM	250 EXC-F Six days	2019-2023
KTM	250 XC-W	2019-2023
KTM	300 EXC	2019-2023
KTM	300 EXC Six days/Erzbergrodeo	2019-2023
KTM	300 XC-W	2019-2023
KTM	350 EXC-F	2019-2023
KTM	350 EXC-F Six days	2019-2023
KTM	450 EXC-F	2019-2023
KTM	450 EXC-F Six days	2019-2023
KTM	450 XCF-W	2023
KTM	500 EXC-F	2019-2023
KTM	500 EXC-F Six days	2019-2023
