Description
FCX 1201

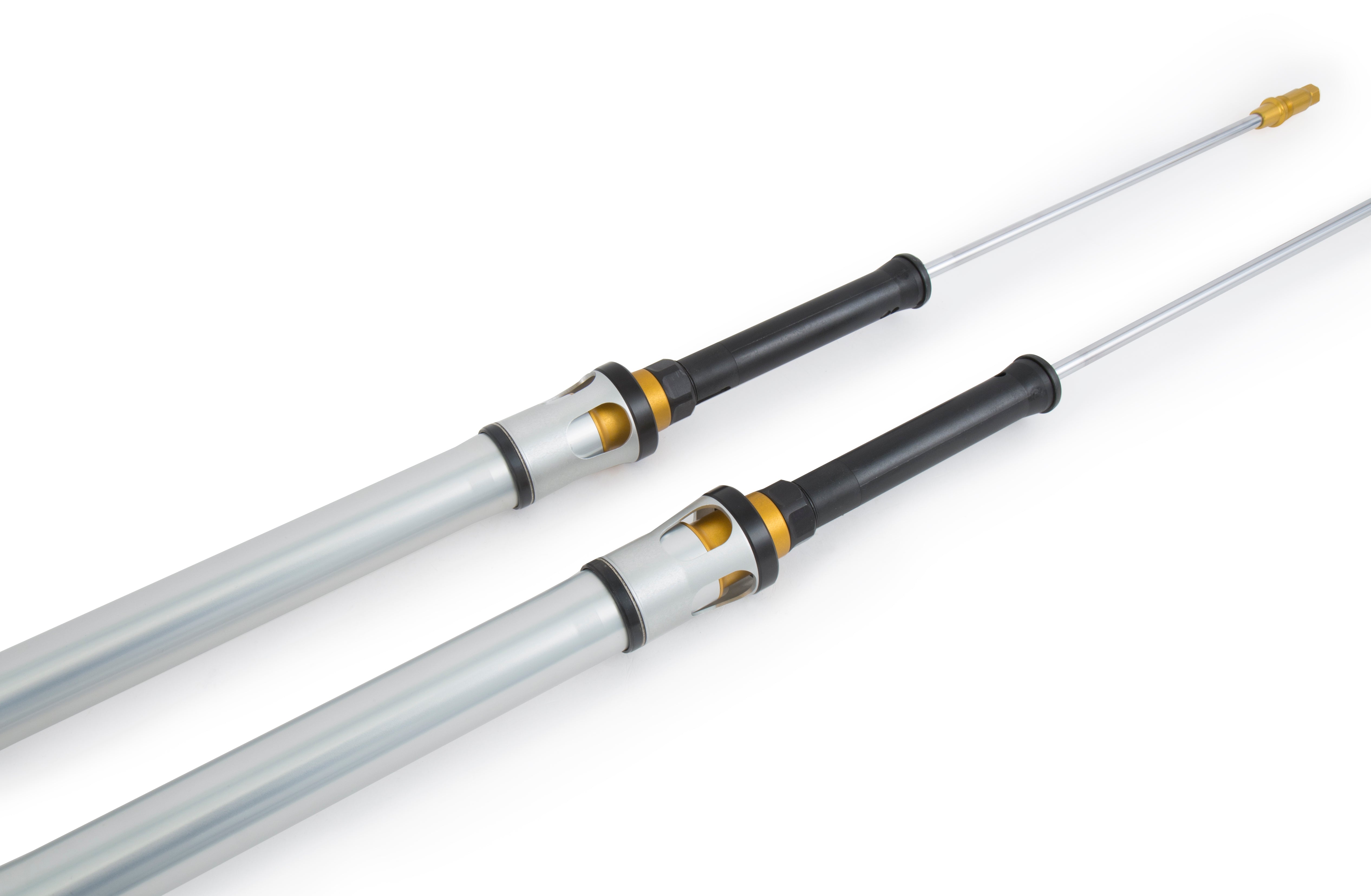

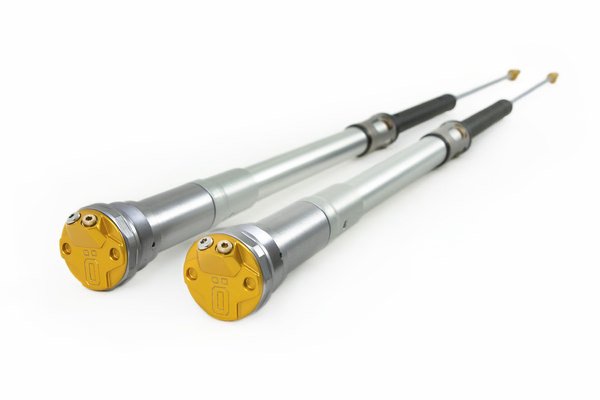

If you want to keep your front fork legs but still upgrade to Öhlins TTX, just pull out the standard inserts and pop in this powerful TTX22 cartridge kit from Öhlins R&D.
The same kit that is fitted in the Öhlins Front Fork is based on the Öhlins TTX-technology is also available as a stand-alone cartridge kit for all major models.
The TTX technology brings a positive pressure balance in the system, thanks to the twin tube technology.
The gas pressurized dividing piston inside pushes the hydraulic fluid back into the low pressure side and the end result is better improved performance and no more cavitation.
The kit is lighter thanks to an 8 mm steel hollow shaft and the main piston diameter is 22 mm.
All other details are made in aluminum.
Settings are constantly improved and a new one-way rebound valve was recently introduced which improves the performance and gives better front wheel control.
Available for most major models on the market.
Note!
This kit requires springs and oil which are sold separately.
Type Code: TTX Cartridge kit
Tech
- Cartridge kit with patented TTX design
- Gas pressurized damping system for immediate damping response
- Easy installation in OE front forks

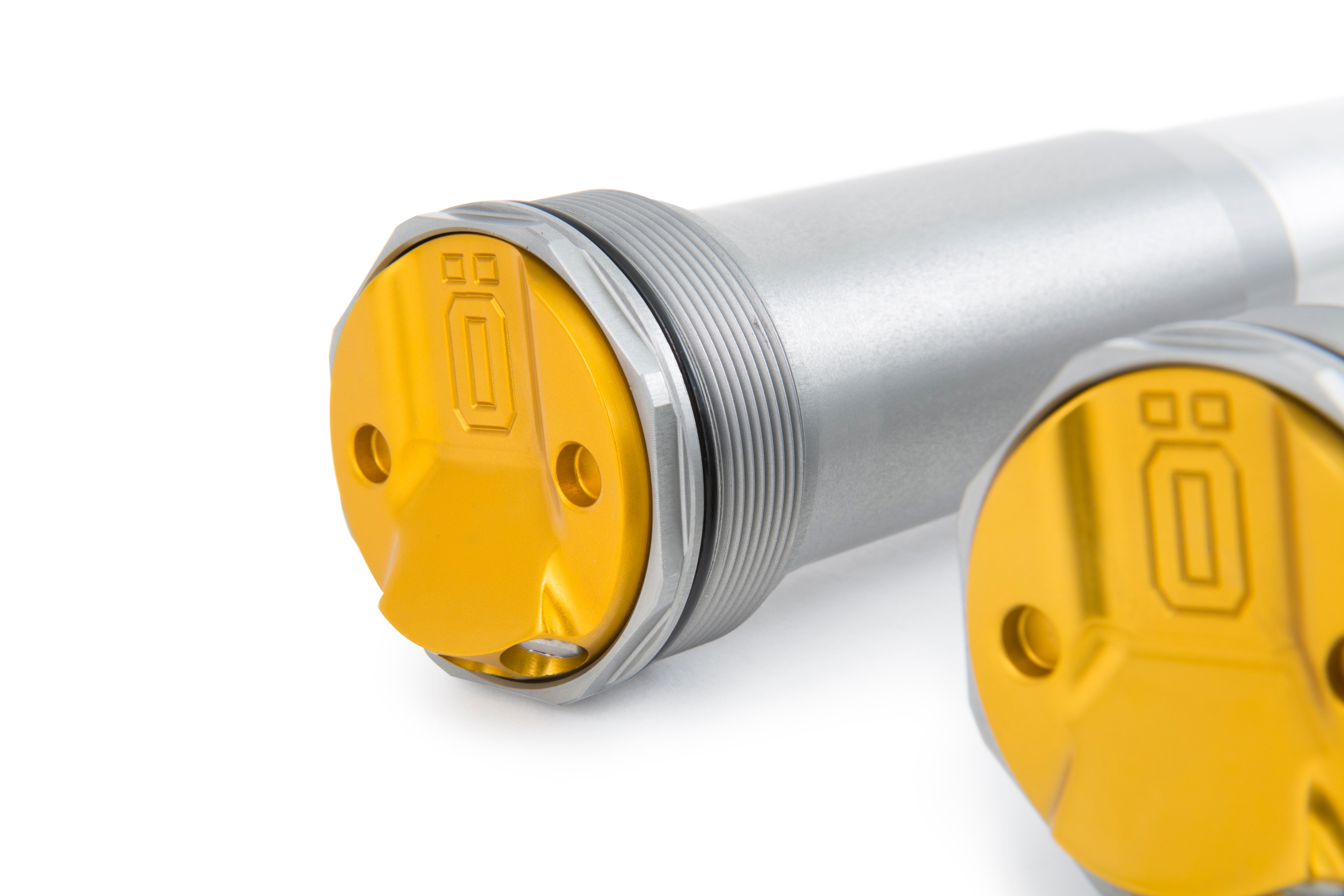

- External compression adjuster
- External rebound adjuster
- Improved hydraulic stops to improve bottoming resistance
- Springs, oil and installation tools sold separately.
- New top out rubber for smoother top out feeling
- Available for all major MX and Enduro models
Spec. by Application for FCX 1201
Application: 2017-2020 Husqvarna FC 250/350/450
Notes: 08765- series springs *Replaces FCX 201*
Length: 940 mm
Stroke: 302 mm
Recommended Ohlins Oil: 01330
Type code: TTX Cartridge kit
Product Family: TTX 22
Application: 2017-2020 Husqvarna TC 125/250
Notes: 08765- series springs *Replaces FCX 201*
Length: 940 mm
Stroke: 302 mm
Recommended Ohlins Oil: 01330
Type code: TTX Cartridge kit
Product Family: TTX 22
Application: 2017-2020 Husqvarna TX 300i / FX 350/450
Notes: 08765- series springs *Replaces FCX 201* Model was called TX 300 until and including year model 2019"
Length: 940 mm
Stroke: 302 mm
Recommended Ohlins Oil: 01330
Type code: TTX Cartridge kit
Product Family: TTX 22
Application: 2016-2020 KTM 125/150 SX Europe
Notes: 08765- series springs *Replaces FCX 201*
Length: 940 mm
Stroke: 302 mm
Recommended Ohlins Oil: 01330
Type code: TTX Cartridge kit
Product Family: TTX 22
Application: 2017-2020 KTM 125/150/250 SX USA/CAN/AUS/NZ/MEX
Notes: 08765- series springs *Replaces FCX 201*
Length: 940 mm
Stroke: 302 mm
Recommended Ohlins Oil: 01330
Type code: TTX Cartridge kit
Product Family: TTX 22
Application: 2017-2020 KTM 250 SX Europe
Notes: 08765- series springs *Replaces FCX 201*
Length: 940 mm
Stroke: 302 mm
Recommended Ohlins Oil: 01330
Type code: TTX Cartridge kit
Product Family: TTX 22
Application: 2017-2020 KTM 250/300 XC TPI USA/CAN/AUS/NZ/MEX
Notes: 08765- series springs *Replaces FCX 201* Models were called 250/300 XC USA/CAN/AUS/NZ/MEX until and including year model 2019"
Length: 940 mm
Stroke: 302 mm
Recommended Ohlins Oil: 01330
Type code: TTX Cartridge kit
Product Family: TTX 22
Application: 2016-2020 KTM 250/350 SX-F Europé
Notes: 08765- series springs *Replaces FCX 201*
Length: 940 mm
Stroke: 302 mm
Recommended Ohlins Oil: 01330
Type code: TTX Cartridge kit
Product Family: TTX 22
Application: 2017-2020 KTM 250/350 SX-F USA/CAN/AUS/NZ/MEX
Notes: 08765- series springs *Replaces FCX 201*
Length: 940 mm
Stroke: 302 mm
Recommended Ohlins Oil: 01330
Type code: TTX Cartridge kit
Product Family: TTX 22
Application: 2017-2020 KTM 250/350/450 XC-F USA/CAN/AUS/NZ/MEX
Notes: 08765- series springs *Replaces FCX 201*
Length: 940 mm
Stroke: 302 mm
Recommended Ohlins Oil: 01330
Type code: TTX Cartridge kit
Product Family: TTX 22
Application: 2016-2020 KTM 450 SX-F Europé
Notes: 08765- series springs *Rpelaces FCX 201*
Length: 940 mm
Stroke: 302 mm
Recommended Ohlins Oil: 01330
Type code: TTX Cartridge kit
Product Family: TTX 22
Application: 2017-2020 KTM 450 SX-F USA/CAN/AUS/NZ/MEX
Notes: 08765- series springs *Replaces FCX 201*
Length: 940 mm
Stroke: 302 mm
Recommended Ohlins Oil: 01330
Type code: TTX Cartridge kit
Product Family: TTX 22
Application: 2020 KTM 450 XCF-W USA/CAN/AUS/NZ/MEX
Notes: 08765- series springs *Replaces FCX 201
Length: 940 mm
Stroke: 302 mm
Recommended Ohlins Oil: 01330
Type code: TTX Cartridge kit
Product Family: TTX 22
Fitment
Fitment
This item may fit other vehicles not listed here.| Husqvarna | FC 250/350/450 | 2017-2020 |
| Husqvarna | TC 125/250 | 2017-2020 |
| Husqvarna | TX 300i / FX 350/450 | 2017-2020 |
| KTM | 125/150 SX Europe | 2016-2020 |
| KTM | 125/150/250 SX USA/CAN/AUS/NZ/MEX | 2017-2020 |
| KTM | 250 SX Europe | 2017-2020 |
| KTM | 250/300 XC TPI USA/CAN/AUS/NZ/MEX | 2017-2020 |
| KTM | 250/350 SX-F Europé | 2016-2020 |
| KTM | 250/350 SX-F USA/CAN/AUS/NZ/MEX | 2017-2020 |
| KTM | 250/350/450 XC-F USA/CAN/AUS/NZ/MEX | 2017-2020 |
| KTM | 450 SX-F Europé | 2016-2020 |
| KTM | 450 SX-F USA/CAN/AUS/NZ/MEX | 2017-2020 |
| KTM | 450 XCF-W USA/CAN/AUS/NZ/MEX | 2020 |
Part Numbers and Availability
| Option name | MFR. Part Number | Barcode | SKU | Stock |
| 2017-2020 Husqvarna FC 250/350/450 - 37 inches (940 mm) | FCX 1201 | OHLINS-FCX_1201 | Available |
