YA 2190

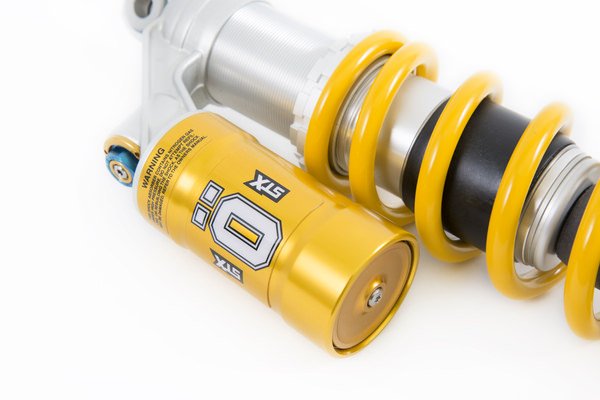

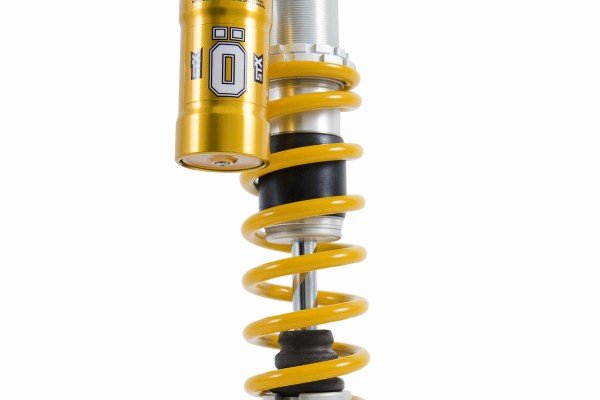

An updated 46 mm shock absorber from Öhlins, perfectly suited for 85cc bikes and OE applications.

There's always been a 46 mm off road shock absorber in the Öhlins line-up but for 2013 it was updated with new valve technology and some retuning by Öhlins R&D.

The result is the newborn Öhlins STX 46.

Compared to previous 46 mm models the STX is updated in many areas, resulting in developed dynamics of the shock absorber which the rider will be able to feel, giving the rider a better function in every way possible.

The two way compression adjuster is new and similar to the Öhlins TTX shocks for the larger bikes.

Wide range of low speed compression adjustment and 3 clicks high speed compression adjustment leaves nothing more to wish and creates a great performance.

The PDS – Progressive Damping System – function has also been updated to better control the forces the shock absorber is subject to.

Rebound damping adjustment is also available as well as spring pre-load adjustment.

A wide range of springs are as always available to chose from.

Type Code: S46PR1C2W

Tech

• Our new 85 cc shock
• New 2 way compression adjuster
• 40 click low speed, 3 click high speed
• Improved dynamics, equals better function
• Updated PDS function
• New pre-load adjuster

Spec. by Application for YA 2190

Fitment

Fitment

This item may fit other vehicles not listed here.

Yamaha

YZ 85

2019-2021
