Description
HO 136

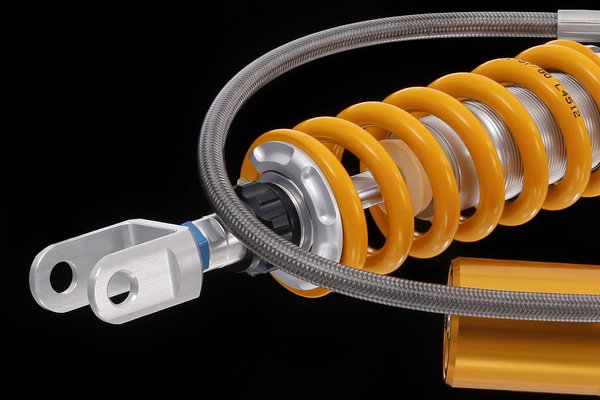

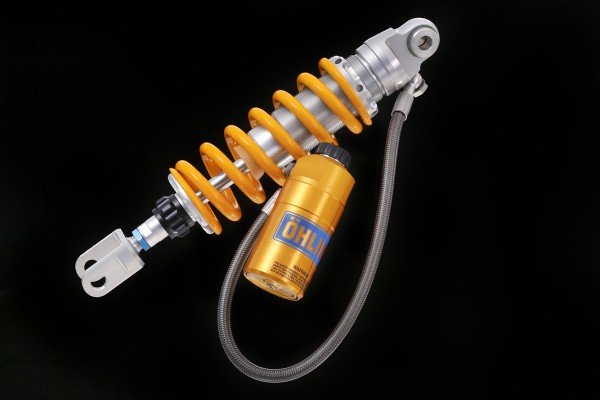

The STX36 has a 36mm piston and is available in a version with a hose remote reservoir as well as in monotube and piggyback versions, all depending on what is most suitable for the bike.
All the hypersport STX36 models are fully adjustable.
It has the Öhlins STX technology which has been developed and refined over the years to work for a number of bikes, and the hypersport versions have been specifically tested on each bike it's been made for.
Type Code: S36HR1C1
Tech
- Well proven Öhlins STX design
- Fully adjustable
- 36 mm piston diameter
- Available in different configurations depending on the bike model
- Maintenance and service possibilities
Spec. by Application for HO 136
Application: 2022 Honda CBR150R
Notes:
Length: 299 mm
Stroke: 58 mm
Spring Rate: 100 N/mm n/m
Recommended Ohlins Oil: 1309
Fitted Spring: 60294-34 (Y)
Mounting Position: Rear Mono
Type code: S36HR1C1
Product Family: STX 36 Supersport
Fitment
Fitment
This item may fit other vehicles not listed here.Honda | CBR150R | 2022 |
Part Numbers and Availability
Option name | MFR. Part Number | Barcode | SKU | Stock |
2022-2022 Honda CBR150R | HO 136 | OHLINS-HO_136 | Available |
