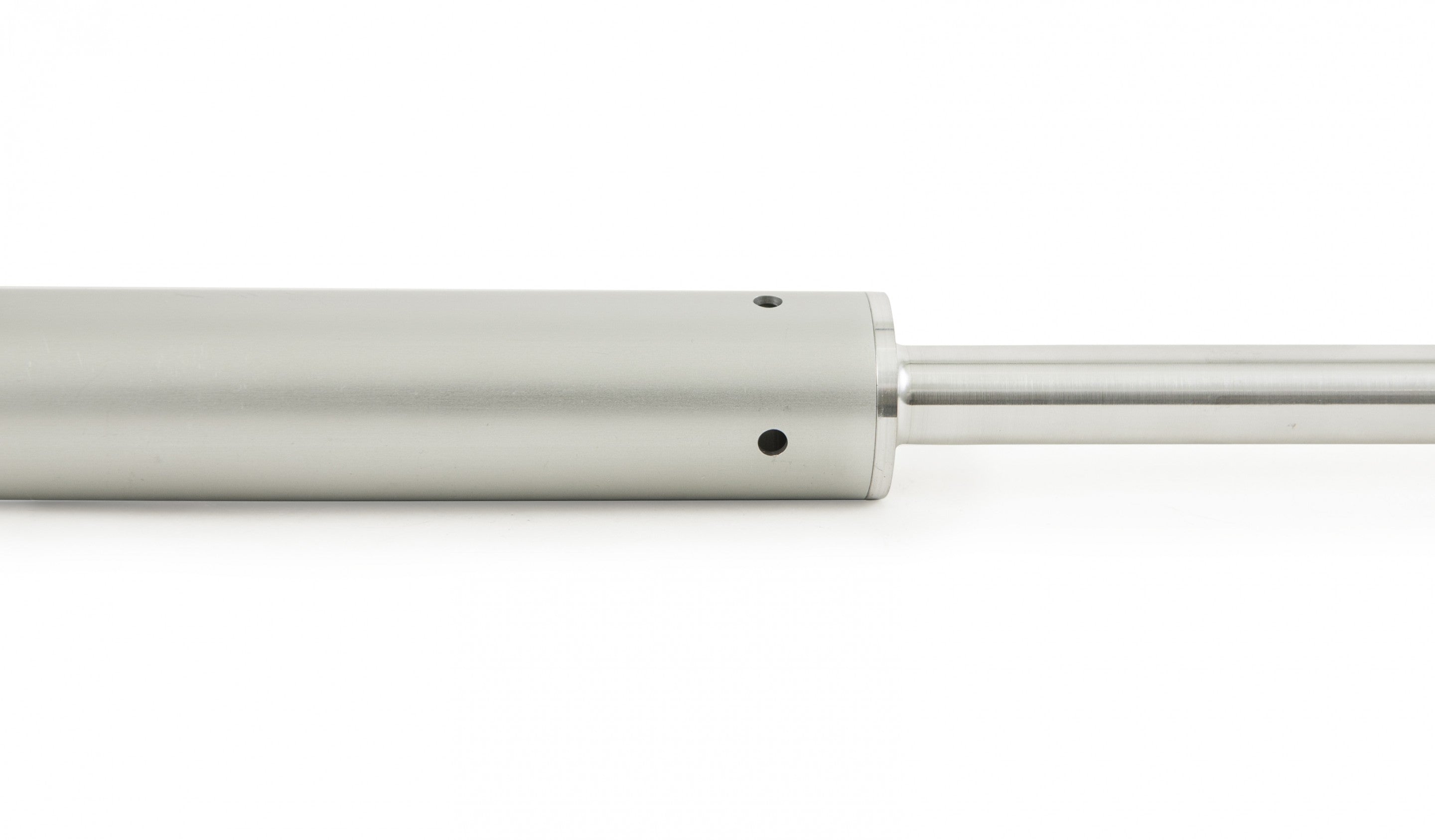

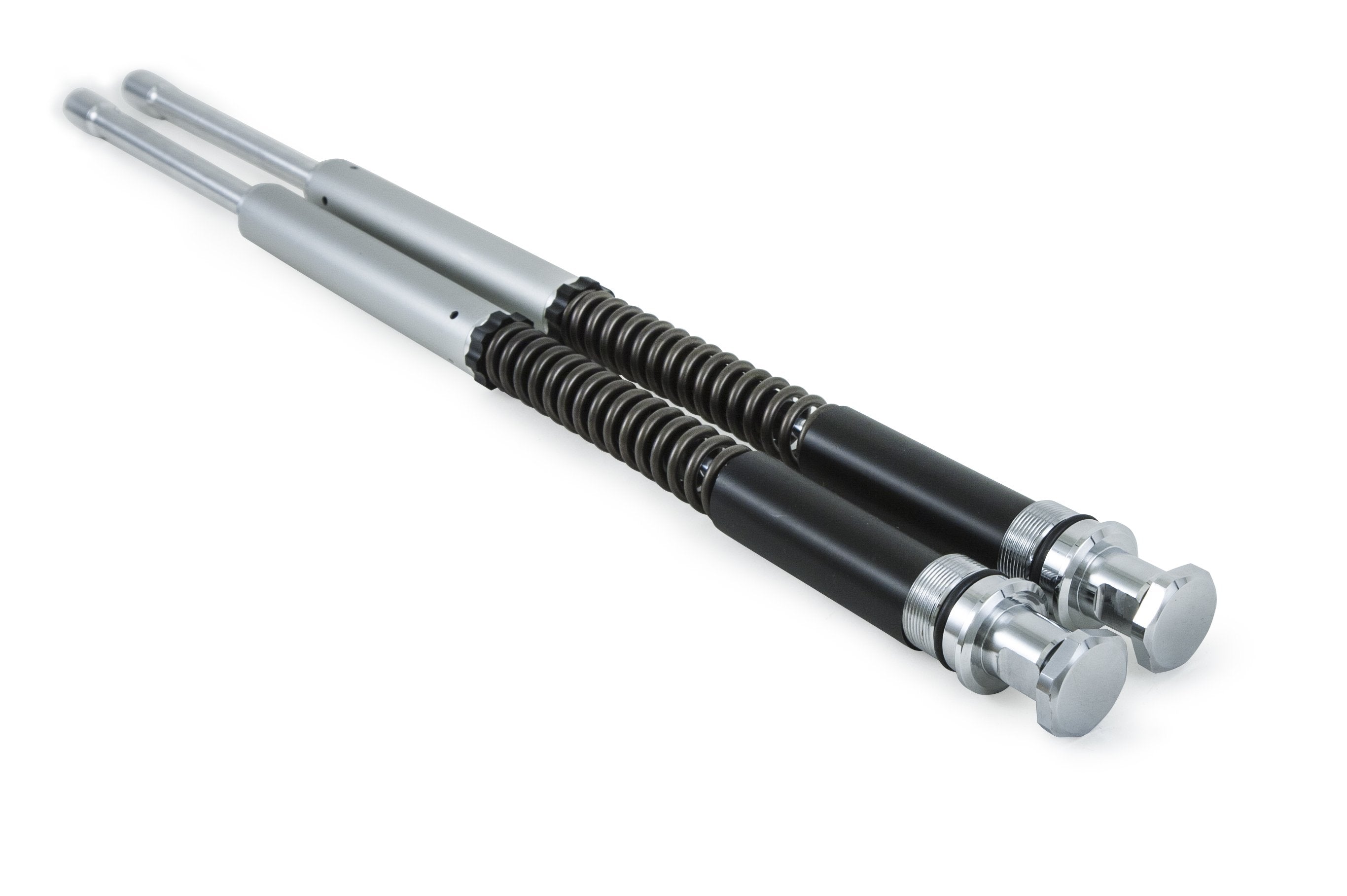

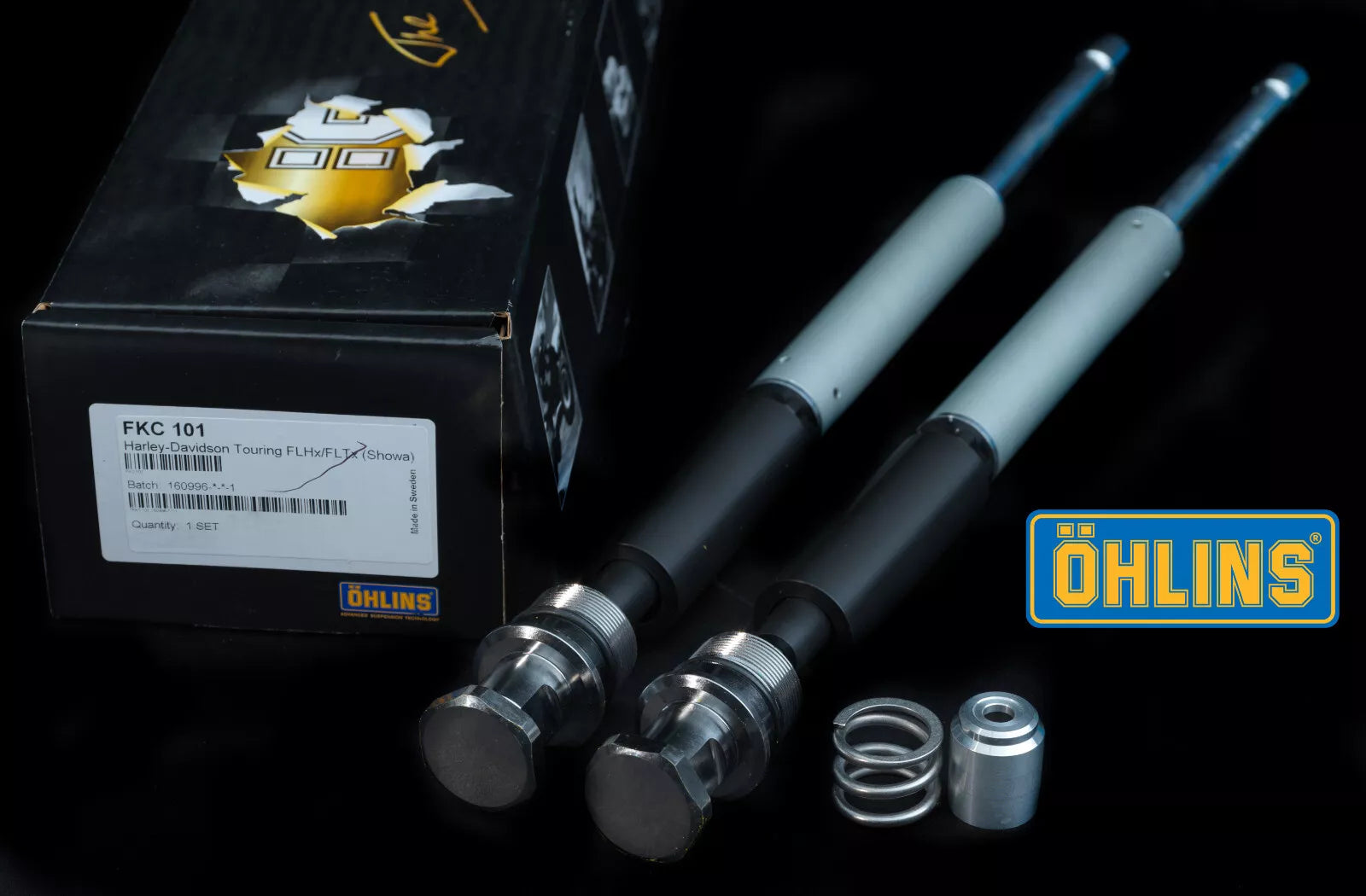

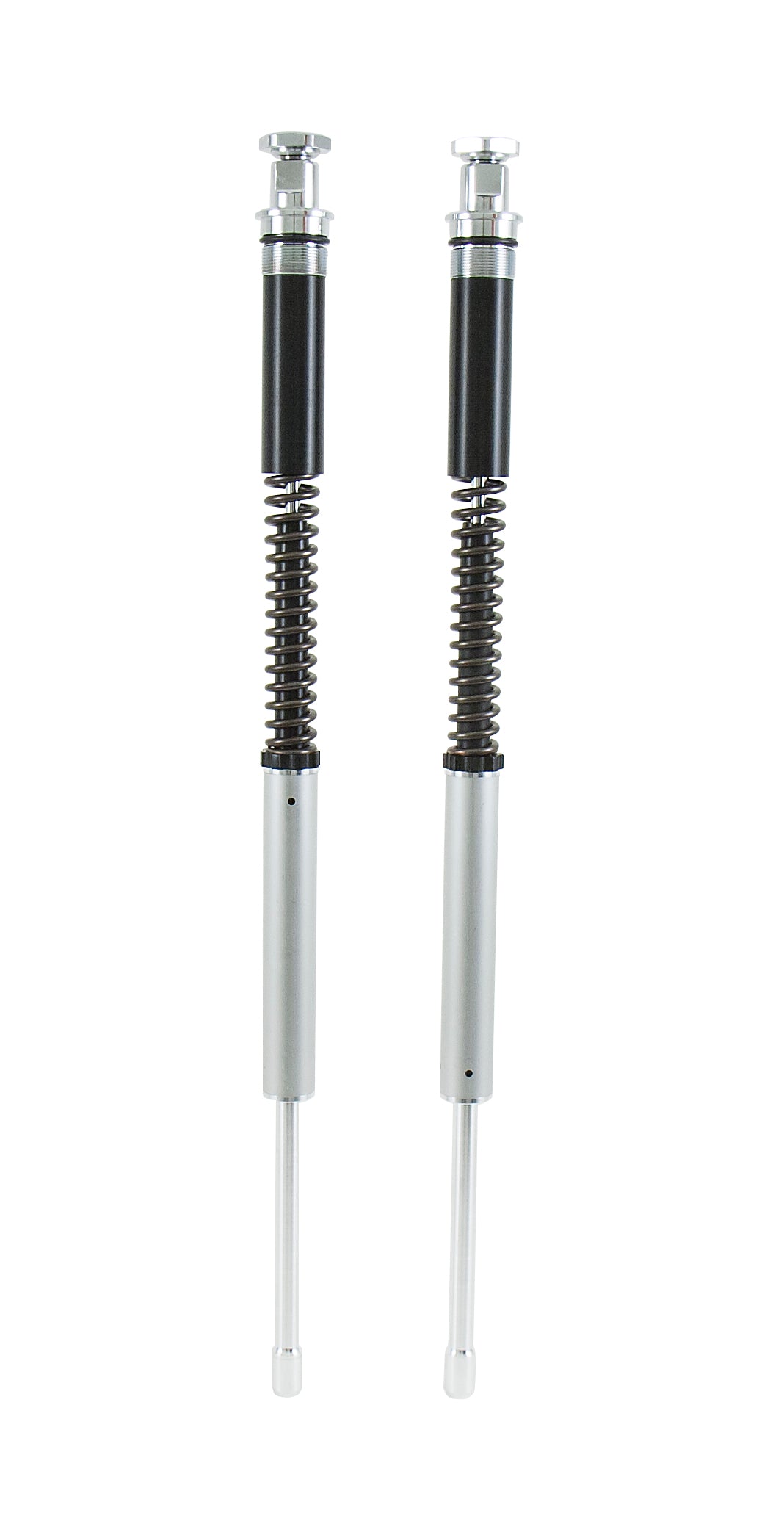

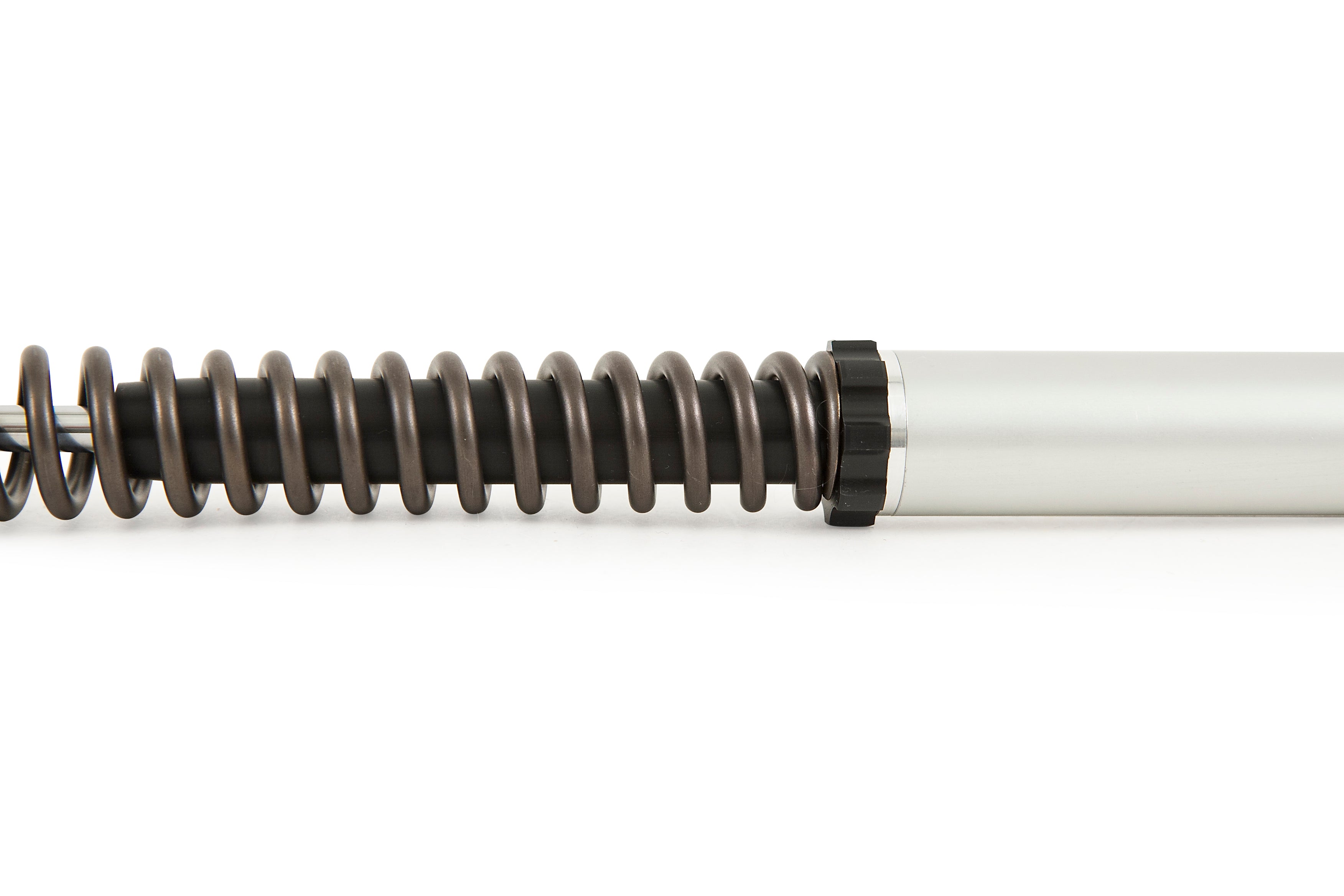

ÖHLINS - Harley Fork Cartridge Kit (FKC 101)

The Öhlins FKC 100 series Fork Cartridge Kit introduces Öhlins advanced suspension technology to the front forks of the popular line of Harley Davidson FLH/FLT Touring Baggers. This high-end front fork cartridge damping system vastly improves performance, comfort and vehicle control for the Harley-Davidson front forks. Built on race proven Öhlins NIX technology, each fork leg features an 8 mm steel shaft, an aluminum damper tube and 25 mm pistons which greatly reduce the dreaded 'brake-dive'. To maximize the damping performance available in the confines of a fork leg, compression and rebound damping are separated between the two legs. Of course, optional spring rates are available for individual rider weights, preferences and usage. Whatever your needs are, you’ll be surprised by how your bike can be transformed. Note! This kit requires springs and oil which are sold separately.

Tech

• 25 mm pistons
• Öhlins NIX technology
• Aluminum damping tubes
• Optional spring rates
• Improved feel, control and comfort
• Easy to install
• Springs, oil and installation tools sold separately.

Springs options:

• 08419-10 - One driver, no extra load 10n/mm (Recommended Spring)
• 08865-01 - Lowering kit 25 mm (-1")

Setup Data

• 01309-xx - Öhlins Front fork fluid
• 01309-01 (1 Litre )
• Recommended oil level is 80mm

Documents

• Mounting instruction
• Spare Parts

Fitment

• 1997 - 2013 Harley-Davidson Electra Glide
• 1997 - 2013 Harley-Davidson Road Glide
• 1997 - 2013 Harley-Davidson Road King
• 1997 - 2013 Harley-Davidson Street Glide
• 1997 - 2013 Harley-Davidson Ultra Classic
