BRP Rubber Mount Scotts Damper Kit for Husqvarna 701 (2016+) and KTM 690 (2019+)
BRP Rubber Mount Scotts Damper Kit for Husqvarna 701 (2016+) and KTM 690 (2019+)
BRP Rubber Mount Scotts Damper Kit for Husqvarna 701 (2016+) and KTM 690 (2019+)
Roll over image to zoom in Click on image to zoom
BRP Rubber Mount Scotts Damper Kit for Husqvarna 701 (2016+) and KTM 690 (2019+)BRP Rubber Mount Scotts Damper Kit for Husqvarna 701 (2016+) and KTM 690 (2019+)BRP Rubber Mount Scotts Damper Kit for Husqvarna 701 (2016+) and KTM 690 (2019+)

BRP Rubber Mount Scotts Damper Kit for Husqvarna 701 (2016+) and KTM 690 (2019+)

BRPSKU: BRP-DM-902406-3529 Barcode: 941299566602
Damper: Mount kit, Arm and Arm puller tool (No damper)
Select Your Bike: Husqvarna 701 / KTM 690
Price:
$771.95 CAD
Stock:
Accepting orders (not in-stock)
Expect delay.

    Pickup available at our Toronto store when "In-stock".

    For Out-of-Stock products that include a steering damper:

    Due to high demand and production delays for Scotts Steering Dampers, shipping of your order may be delayed if it includes a damper. We receive weekly shipments from Scotts and process orders in the order they are received. Thank you for your understanding!

    Description

    The BRP rubber-mounted SUB "Scotts Under Bar" adapter uses (8) polyurethane bushings to isolate vibration and reduce rider fatigue by softening the harshness of hitting square edge rocks and obstacles. Now available with two different durometer bushings to fine tune the amount of vibration dampening.

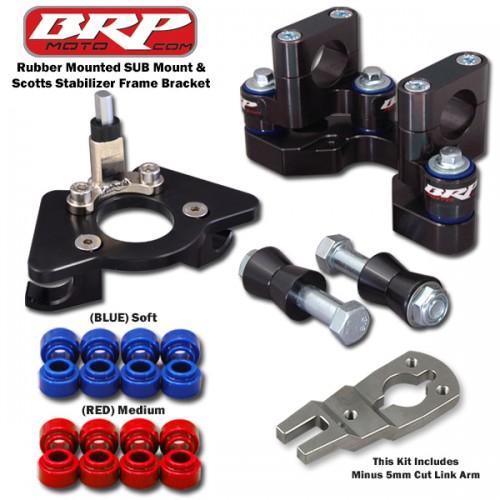

    Mount-only kit includes (DM-SUB-3529-01R or BRP-DM-902406-3529):
    • BRP rubber-mounted SUB adapter
    • Sets of rubber bushings (red = medium, blue = soft)
    • Aluminum cones & all necessary hardware
    • Scotts frame bracket
    • Damper link arm (Stepped Standard -5mm) (LNK-4032-35)
    • Damper arm removal tool

    Complete kit includes (DS-SUB-3529-01R or BRP-DS-902406-3529):

    • Everything in the mount kit except for the arm removal tool
    • One Scotts stabilizer with the link arm installed on it.

    Fitment

    • 2016+ Husqvarna 701
    • 2019+ KTM 690 Enduro

    Designed to mount a Scotts stabilizer below the handlebar using your OEM cast or billet triple clamp. The BRP rubber-mounted SUB adapter mounts to the existing rear bar mount holes and allows you to run in position 3, the most common and popular position. SUB mounting a stabilizer offers several benefits over a conventional "above bar" setup and is becoming a very popular setup for GPs, motocross, off-road, dual sport and for riders of a taller stature.

    • This kit raises the handlebars 15mm taller than stock and puts the bars at 21mm in front of the steering stem (which is the stock bar position)
    • Lower bend bars can be used to compensate for additional height
    • SUB mounting reduces the risk of bodily injury
    • Stabilizer is tucked away and protected from potential damage from a crash
    IMPORTANT NOTE: This kit does NOT fit KTM 690 2018 and older. There is a different kit available for those models.

    Part Numbers and Availability

    Option name MFR. Part Number Barcode SKU Stock
      Complete kit with a damper / Husqvarna 701 / KTM 690 DS-902406-3529 202564728338 BRP-DS-902406-3529 Sold out
      Mount kit, Arm and Arm puller tool (No damper) / Husqvarna 701 / KTM 690 DM-902406-3529 941299566602 BRP-DM-902406-3529 Available
      Complete kit with a damper / Husqvarna 701 Long Range DS-SUB-3529-02R SCOTTS-DS-SUB-3529-02R In stock
      Mount kit, Arm and Arm puller tool (No damper) / Husqvarna 701 Long Range DM-SUB-3529-02R SCOTTS-DM-SUB-3529-02R In stock
