BRP - Rubber Mounted Kit Sub Mount 2020+ Husqvarna FC/FX/TC/TX and KTM SX/SX-F/XC (DM-901616-30)

Vendor: BRP
SKU: BRP-DM-901616-30

Damper Option:
Price (CAD):
Sale price$460.00

Get a shipping estimate

Stock:
Available to order - Expect delay.

Possible shipping delay notice:
Due to high demands for Scotts Steering Dampers and production delays at Scotts manufacturing plant, if your order includes a Scotts Steering Damper, there may be a delay of 1 to 3 weeks in shipping your package. We receive weekly shipments of dampers from Scotts and fulfill orders on a first come first serve basis.

Description

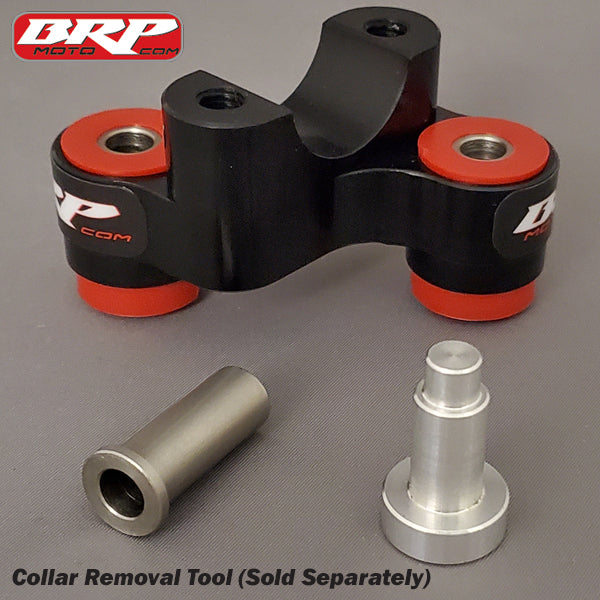

The BRP Rubber Mounted SUB “Scotts Under Bar”  Adapter uses (8) Poly-Urethane bushings to isolate vibration and reduce rider fatigue by softening the harsh spike of hitting square edge rocks and obstacles. NOW available with two different durometer bushings to fine tune the amount of vibration dampening.

What's Included in the Mount Kit?

1) BRP Rubber Mounted SUB Adapter
2) Sets of Rubber Bushings -(Red = Medium and Blue = Soft.)
& All Necessary Hardware.

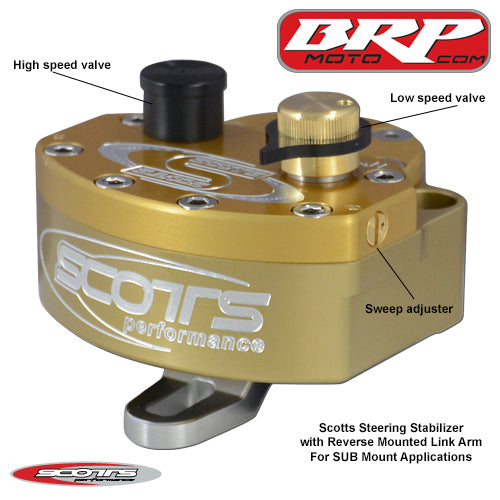

This kit is designed for those of you who already have a Scotts stabilizer and frame bracket and would like to go sub mounted. Kit includes Sub adapter and all necessary hardware.

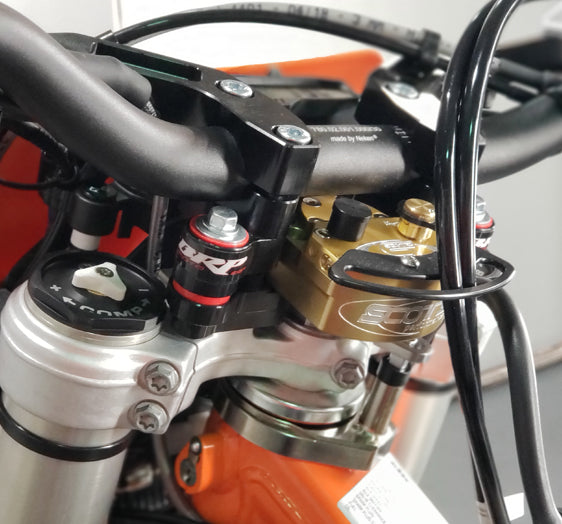

Designed to mount a Scotts stabilizer below the handlebar using your OEM cast or billet triple clamp. The BRP Rubber Mounted SUB adapter mounts to the existing rear bar mount holes and allows you to run in position 3 which is the most common and popular position. SUB Mounting a stabilizer offers several benefits over a conventional “above bar” setup and is becoming a very popular setup for GP’s, motocross, off road, dual sport applications and riders of taller stature.

  • Offers an approximately 1″ taller bar position
  • Lower Bend Bars can be used to compensate for additional height.
  • SUB Mounting reduces the risk of bodily injury
  • Stabilizer is tucked away and protected from potential damage from a crash.

vehicle-makes:
Husqvarna, KTM

vehicle-years:
2020+

This unit cannot be used with cycra center reach mount handguards.

Fitment:

KTM

20-21 125 SX
20-21 150 SX
20-21 250 SX, XC
20-21 300 XC
20-21 250 SX-F, XC-F
20-21 350 SX-F, XC-F
20-21

450 SX-F, XC-F



Husqvarna

20 - 21 FC 250
20 - 21 FC 350
20 - 21 FC 450
20 - 21 FX 350
20 - 21 FX 450
20 - 21 TC 125
20 - 21 TC 250
20 - 21 TX 300
