Specifically designed for those riders who are looking for more than just your average headlight.
The XL Pro, LED KTM 690 (12-18) kit is in a league of its own, producing 4,900 lumens and 40 watts giving you the perfect mix of power and performance, and offers a 20% dimming feature. The XL Pro, LED KTM 690 (12-18) kit Kit has been meticulously designed by our engineers to give our riders an extremely light weight (2.45 lbs) race light, while presenting a unique style and appearance that you will only find from Baja Designs.
The XL Pro, LED KTM 690 (12-18) kit Kit is plug and play making for an easy install. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.
- Satisfactions Guarantee – 30 Day Money Back
- Limited Lifetime Warranty – Complete Purchase Protection
- uService® – Replaceable Lenses And Optics
- ClearView® – All The Light, Right Where You Need It.
- MoistureBlock™ – Waterproof, Rain Proof, Submersible
- CopperDrive® – Only LED Driven At 100%
- 5000K Daylight – Less Driver Fatigue, Natural Color
- Lumens: 4,900 Utilizing 4 Cree XP-L LEDs
- Wattage/Amps: 40W / 2.90A
- Dimensions: 4.43" x 3.65" x 4.43"
- Weight: 1.85 lbs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hardcoated Polycarbonate
- Housing: Hard Anodized & Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)

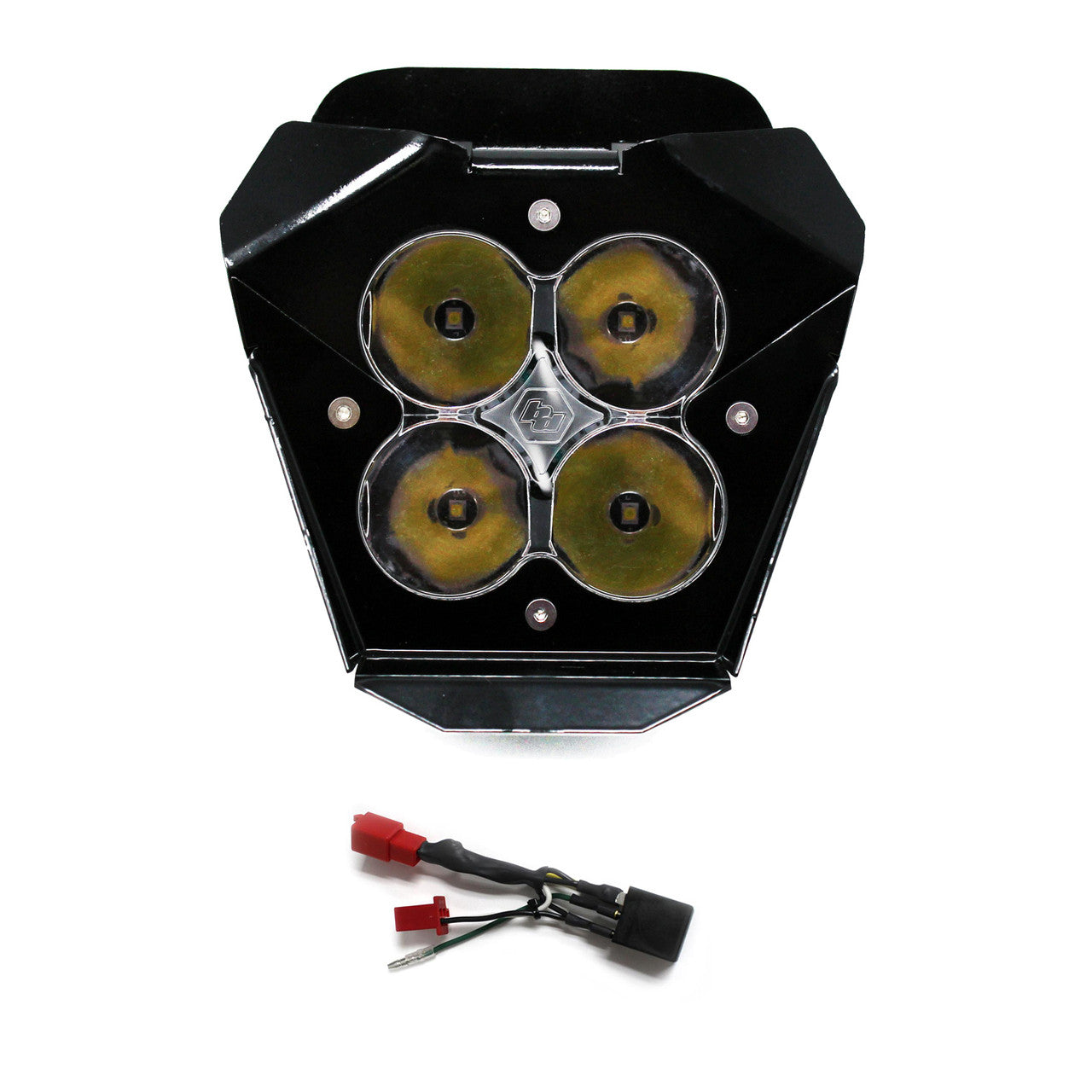

- XL Pro, LED KTM 690 (12-17) kit
- 12-9016 KTM Hi-Low Relay Harness
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Check out the pattern chart attached to see where this kit will be projecting light.
