Specifically designed for the rider needing much more than an average headlight.

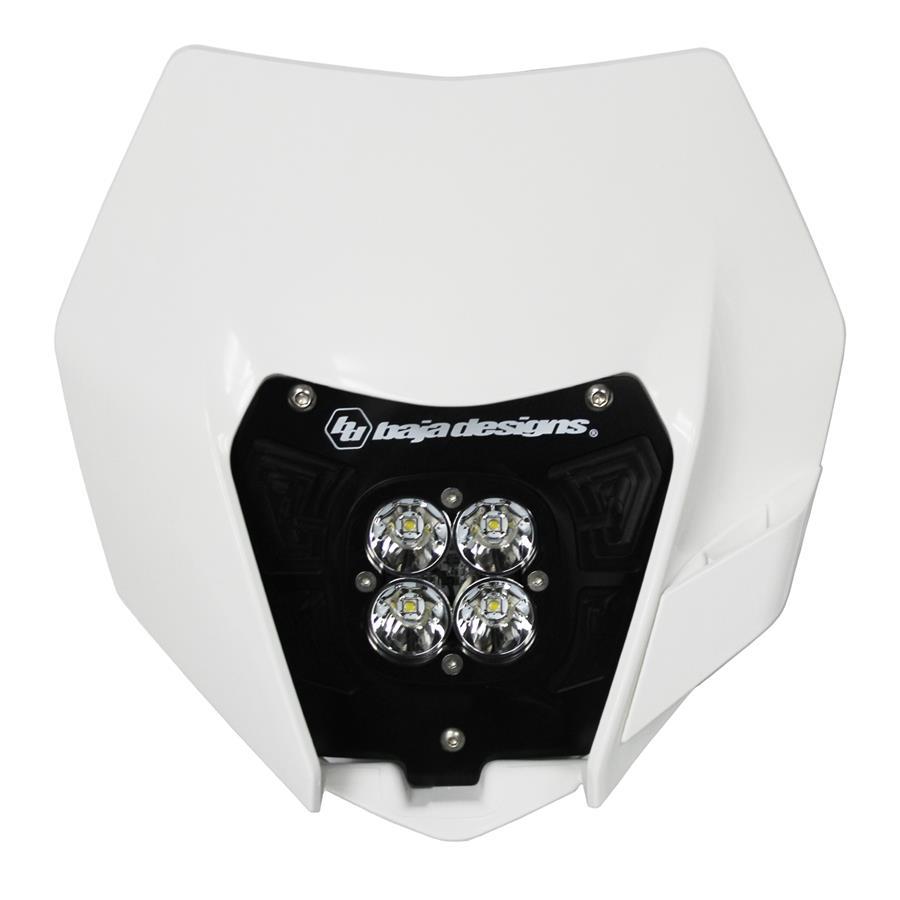

The Squadron® Pro LED for KTM 2014-2016 headlight kit is in a league of its own, producing 4,900 lumens and 40 watts, offering the perfect mix of brightness and performance.
The Squadron® Pro is meticulously designed by our engineers to give our riders an extremely light weight (1.85 lbs) race light, while presenting a unique style and appearance that you will only find from Baja Designs.
Note: 2001 and newer 2stroke KTMs / 2001 and newer carbureted 4stroke KTMs with a lighting coil can run this kit reference the stator chart HERE.
|
Baja Designs Features: Satisfactions Guarantee – 30 Day Money Back Guarantee Limited Lifetime Warranty – Complete Purchase Protection uService® – Replaceable Lenses And Optics ClearView® – All The Light, Right Where You Need It. MoistureBlock™ – Waterproof, Rain Proof, Submersible CopperDrive® – Only LED Driven At 100% 5000K Daylight – Less Driver Fatigue, Natural Color |
Specifications: Lumens: 4,900 Utilizing 4 Cree LEDs Wattage/Amps: 40W / 2.90A Dimensions: 3.07" x 2.77" x 3.07" Weight: 1.85 lbs LED Life Expectancy: 49,930 Hours Front Lens: Hard Coated Polycarbonate Housing: Hard Anodized & Powder Coated Cast Aluminum Bezel: Billet Machined Aluminum Hardware & Bracket Material: Stainless Steel Exceeds MIL-STD810G (Mil-Spec Testing) Built-In Overvoltage Protection IP69K (Waterproof, Submersible to 9ft) IK10 Compliant (Mechanical Impact Testing) |
Includes:
- Squadron® Pro LED KTM 2014-2016 w/headlight kit
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (10°) and Spot (9°) optics, providing a smooth blend of light for both near field applications and distance.
| Option name | MFR. Part Number | SKU | Stock |
| A/C | BD-497091AC | Available | |
| D/C | 497091 | BD-497091 | In-stock |
