If you're looking to go night riding look no further, our Baja Designs drop in replacement headlight kit is a major upgrade from stock and features a rugged design. This headlight kit was designed with ample adjustability, and features a significant amount of vertical and horizontal spread for ultimate trail coverage. This specific model utilizes our XL Pro which produces 4600 lumens and features a 20% dimming feature. The XL Pro now features a variety of Cree LEDs to provide a 20% more reach, with the same power consumption! Installation on this kit is as easy as installing a factory headlight, we provide a plug and play connector and all necessary hardware. Baja Designs offers an industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

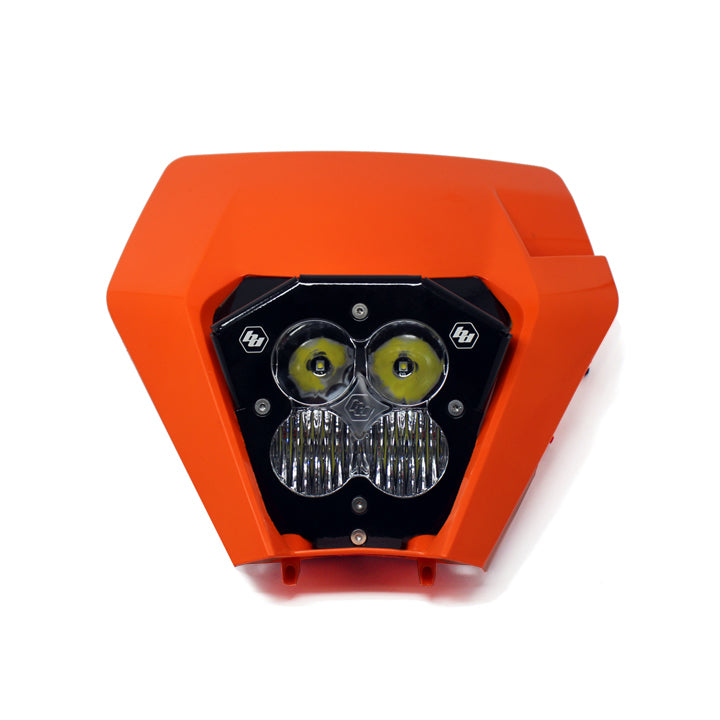

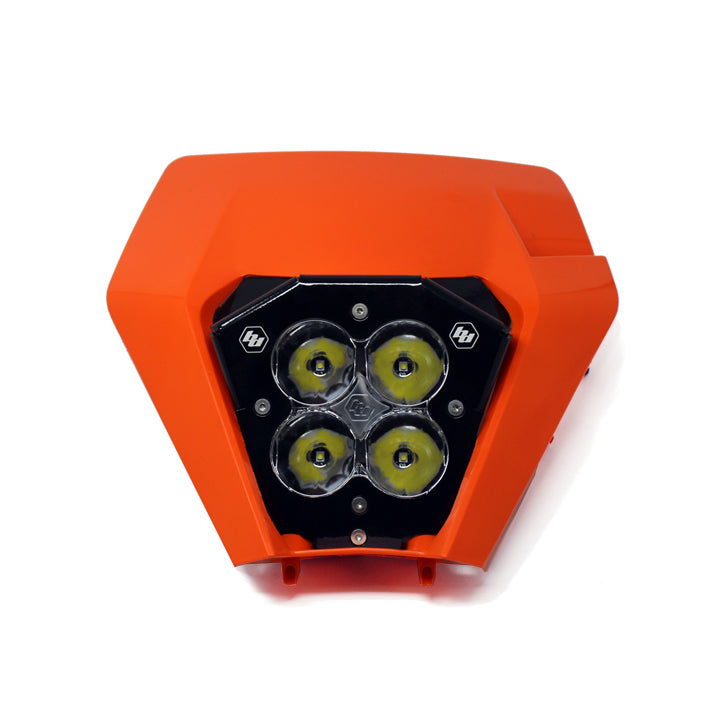

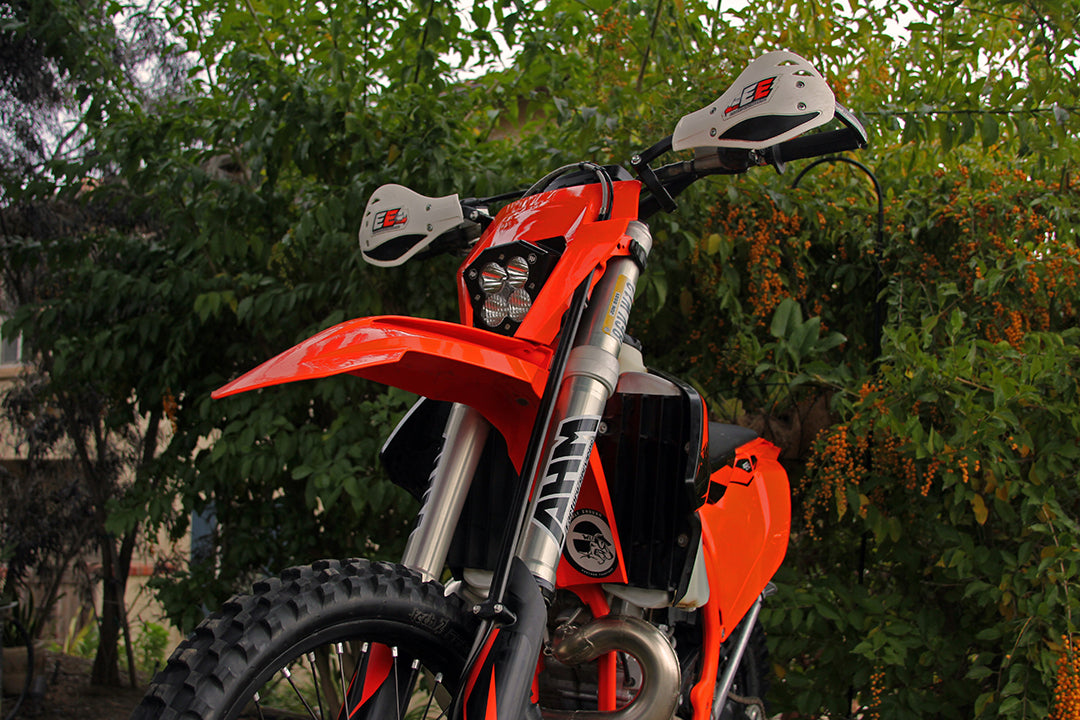

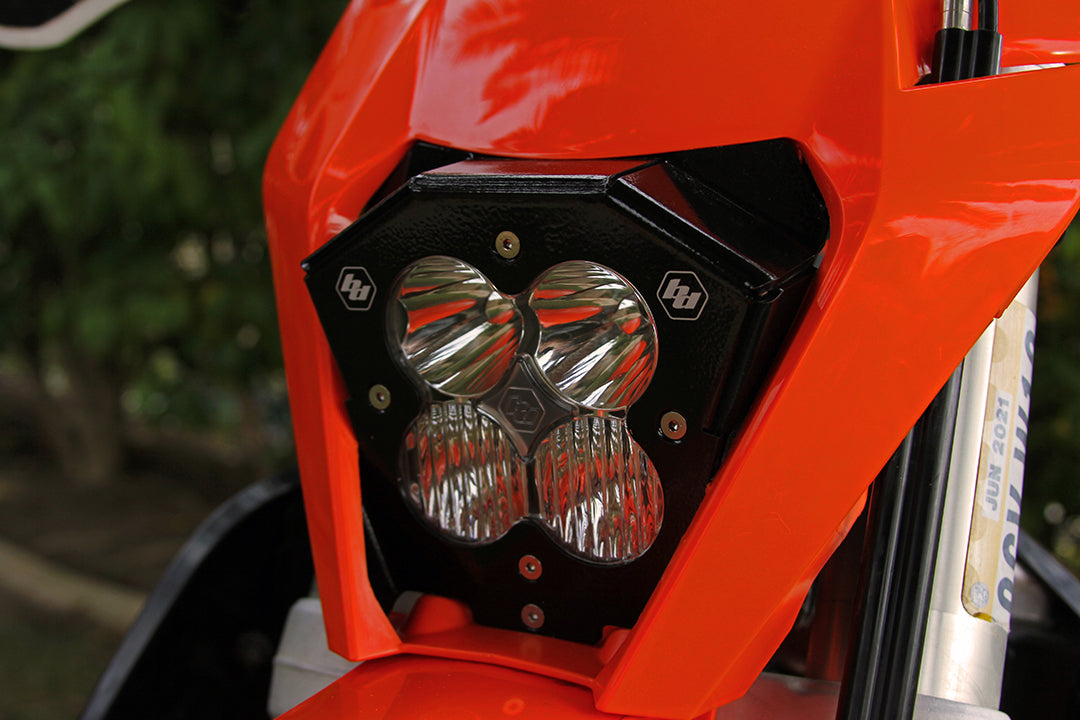

This kit comes preinstalled into a factory KTM Headlight mask (17-19). We offer this kit for the bikes that didn't come equipped with a headlight shell or for the customer who doesn't want to disassemble their factory unit.
Please note:
- 12-9016 - This is an add on part that was designed to retain the factory dual sport bike's hi/low pin out for their bar switch. The Hi-Beam Indicator will always be on when used with our Hi/Low KTM relay harness
Unsure if your bike is powerful enough to run this kit? Check our chart HERE.
Features
- Limited Lifetime Warranty – Complete Purchase Protection
- uService® – Replaceable Lenses And Optics
- ClearView® – All The Light, Right Where You Need It.
- MoistureBlock™ – Waterproof, Rain Proof, Submersible
- CopperDrive® – Only LED Driven At 100%
- 5000K Daylight – Less Driver Fatigue, Natural Color
Specifications
- Lumens: 9,500 Utilizing 4 Cree LEDs
- Wattage/Amps: 80W / 5.50A
- Dimensions: 4.43" x 3.65" x 4.43"
- Weight: 2.45 lbs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hardcoated Polycarbonate
- Housing: Hard Anodized & Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Includes
- XL80, LED KTM Kit With 2020-On Headlight Shell
Patterns
High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Option name | MFR. Part Number | SKU | Stock |
XL Pro / AC | BD-507199AC | Available | |
XL Pro / DC | BD-507199 | Available | |
XL80 / DC | 677199 | BD-677199 | In-stock |
