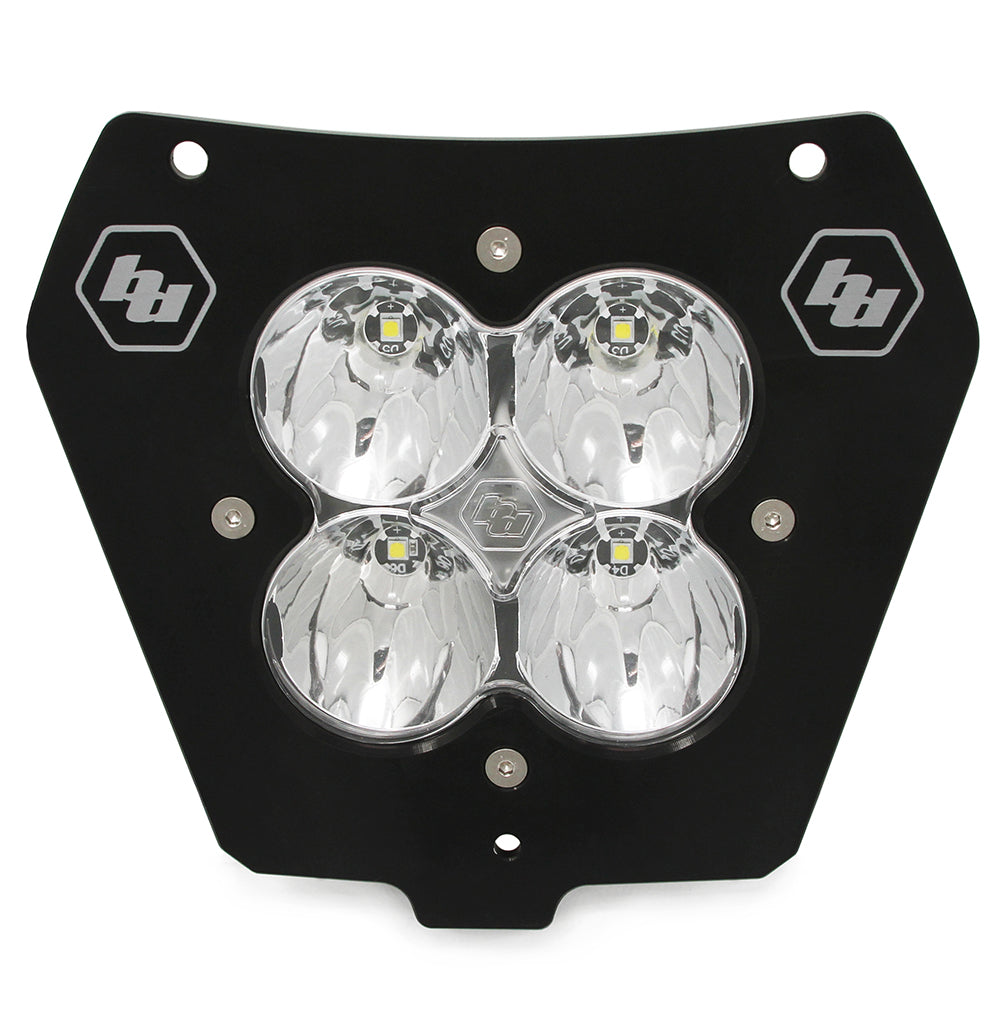

Specifically designed for those riders who are looking for more than just your average headlight. The XL80, LED KTM 2008-2013 Kit is in a league of its own, producing 9,500 lumens and 80 watts giving you the perfect mix of power and performance, and offers a 20% dimming feature. The XL80, LED KTM 2008-2013 Kit has been meticulously designed by our engineers to give our riders an extremely light weight (2.45 lbs) race light, while presenting a unique style and appearance that you will only find from Baja Designs. The XL80, LED KTM 2008-2013 Kit is plug and play making for an easy install. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.
Electric start bikes that require a stator modification or rewind will have to the purchase a switch & wiring harness kit. Unsure if your bike is powerful enough to run this kit? Check our chart HERE.
For Electric-Start Bikes: Some electric-start bikes require the stator to be modified or rewound as well as the addition of a new rectifier/regulator to run LED lights. If your bike requires a new rectifier/regulator please order part (#12-2004) (please provide year/make/model of bike). Detailed stator modification instructions & hardware is included for all bikes that require a stator modification to run LED lights. If your bike requires the stator to be rewound, please call Baja Designs for an order confirmation number to have this service performed.
- Hi-Beam Indicator will always be on when used with our Hi/Low KTM relay harness P/N:12-9016

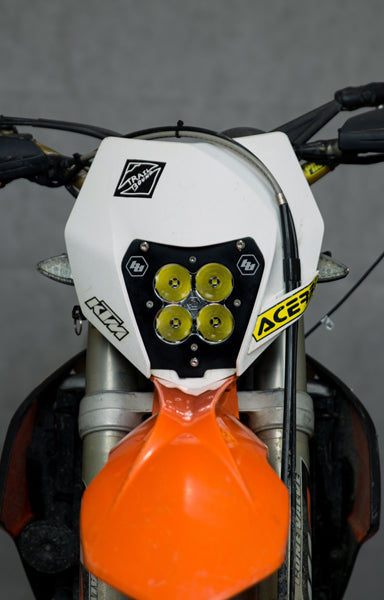

Baja Designs - KTM LED Headlight Kits With Shell (2014 - 2016)
- Limited Lifetime Warranty – Complete Purchase Protection
- uService® – Replaceable Lenses And Optics
- ClearView® – All The Light, Right Where You Need It.
- MoistureBlock™ – Waterproof, Rain Proof, Submersible
- CopperDrive® – Only LED Driven At 100%
- 5000K Daylight – Less Driver Fatigue, Natural Color
- Lumens: 9,500 Utilizing 4 Cree LEDs
- Wattage/Amps: 80W / 5.50A
- Dimensions: 4.43" x 3.65" x 4.43"
- Weight: 2.45 lbs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hardcoated Polycarbonate
- Housing: Hard Anodized & Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
- XL80, LED KTM 2014-On Kit
High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
