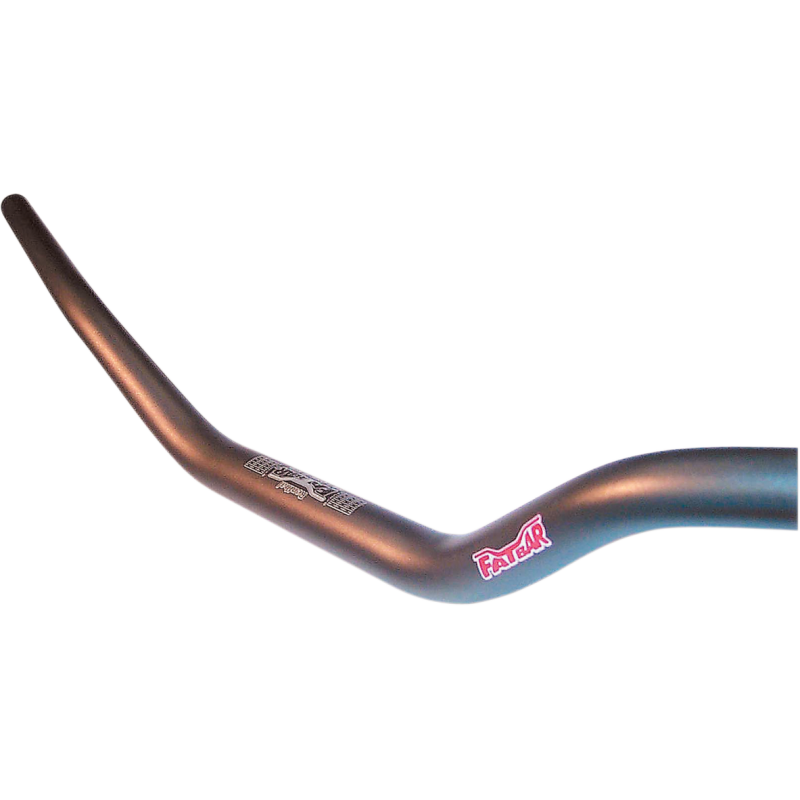

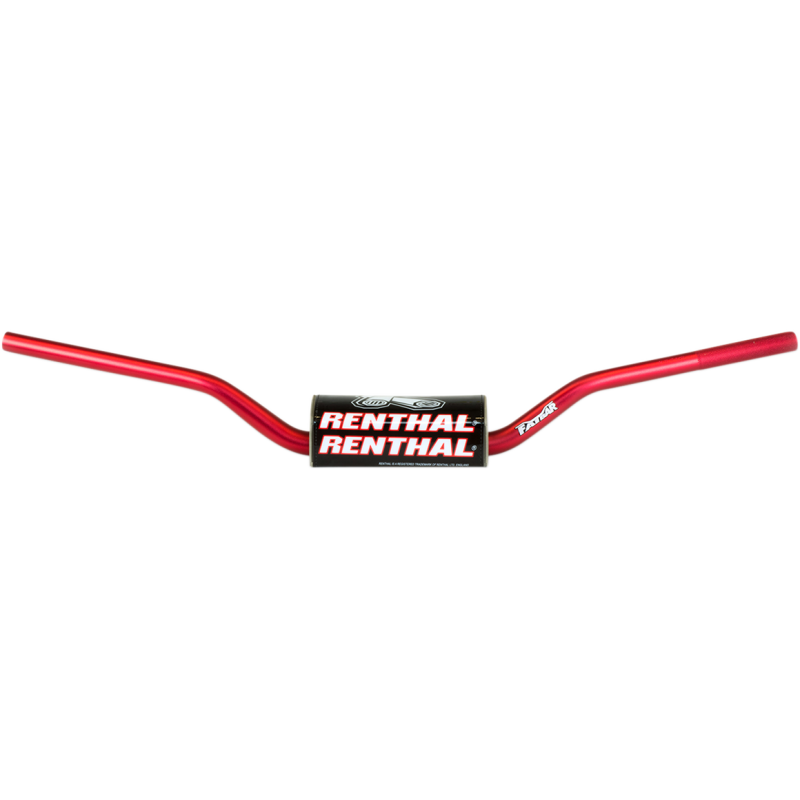

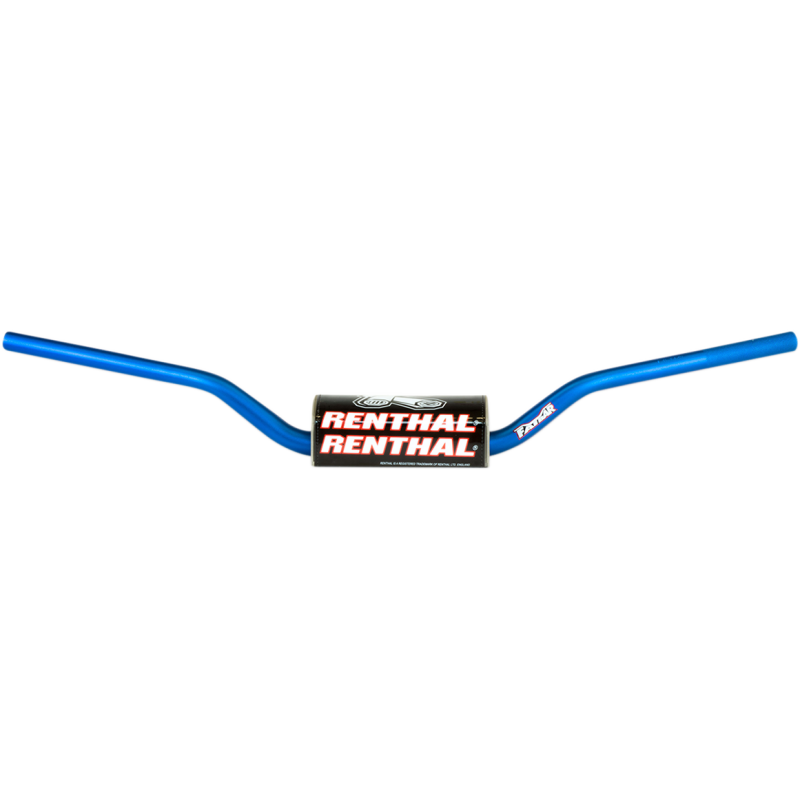

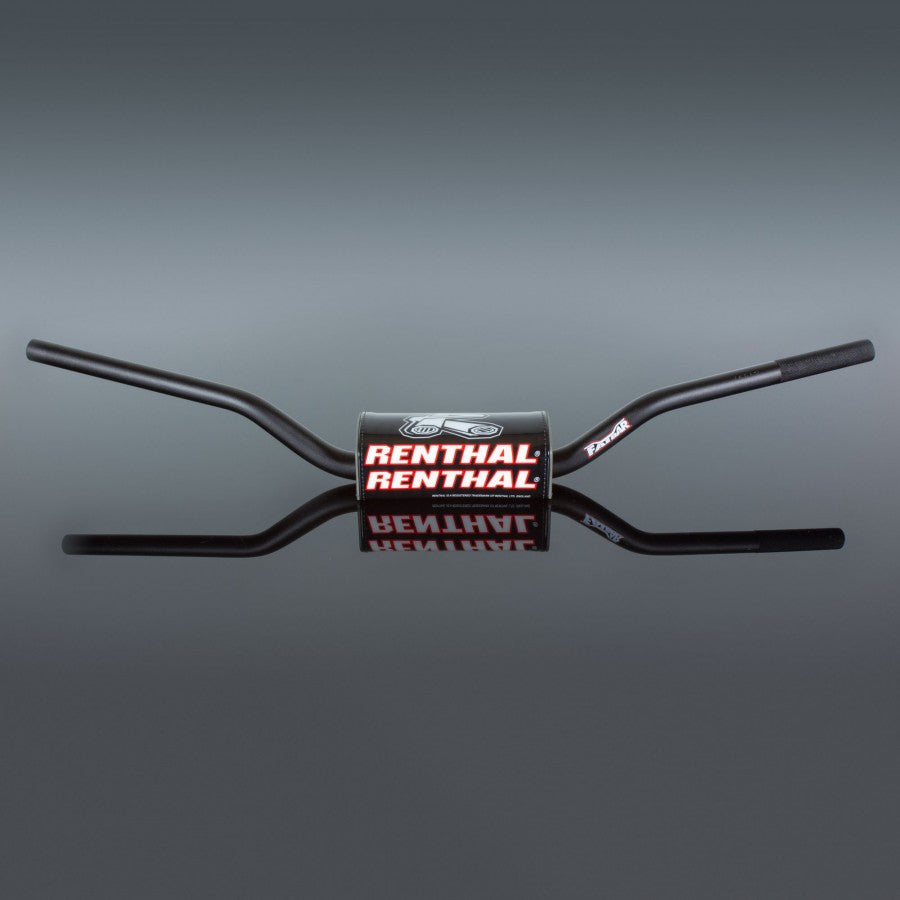

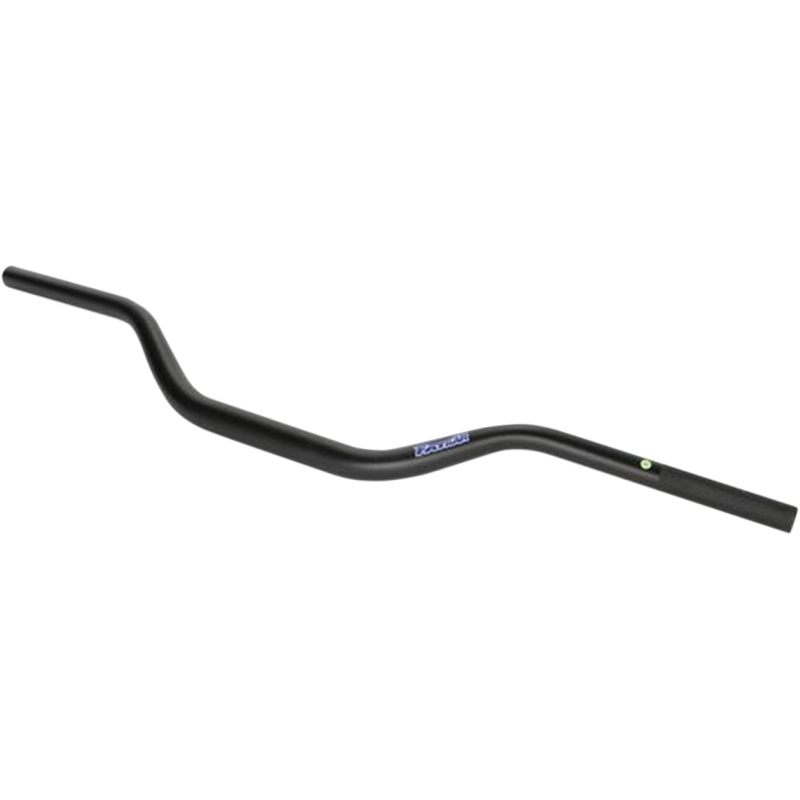

Renthal - Windham Fatbar - #603 Bend

The Fatbar achieves its market leading strength to weight ratio thanks to efficient use of material and computer aided taper wall profiling reducing weight, whilst retaining the strength, durability and flex characteristics of Fatbar.

Fatbars are engineered from a 7010 T6 aluminum exclusive to Renthal for Handlebars. This alloy is specially formulated to reduce vibration through it's structure.  The Fatbar has a shot peened surface texture that increases the fatigue life and durability of the bar.

Each Renthal handlebar design under goes a series of intense tests that check for strength, durability, material integrity, surface finish, impact resistance and dimensional accuracy. Working alongside top level race teams provides us with essential feedback for creating the ultimate handlebar.

Features

• 7010-T6 aluminum alloy, braceless design to reduce weight while maintaining an extremely high strength
• The braceless design allows for a comfortable level of flexibility
• 1-1/8" clamping area reduces slippage
• Laser-etched positioning grid; knurled clutch side bar end prevents grip slippage
• Shot-peened, anodized finish resists corrosion
• Each handlebar includes an updated injection molded foam bar pad for better protection and greater durability
• Requires 1-1/8" bar mounts for bikes originally equipped with 7/8" bars.

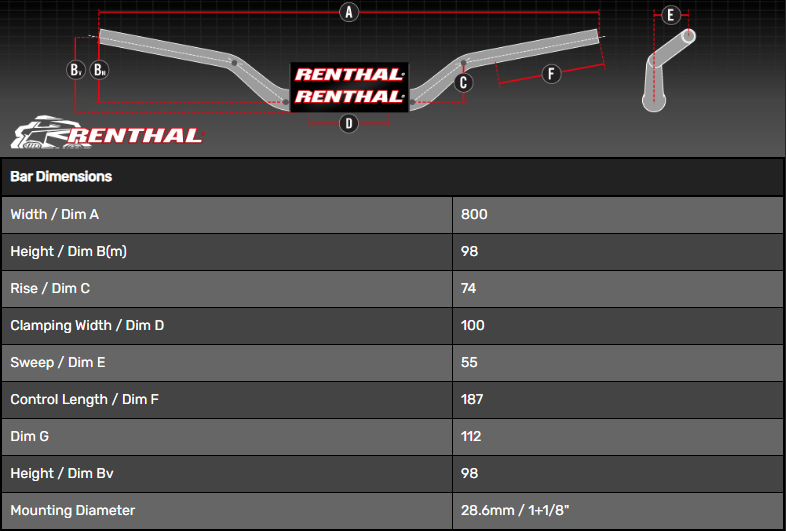

Bar Dimensions

Bar Dimensions
Width / Dim A	800
Height / Dim B(m)	98
Rise / Dim C	74
Clamping Width / Dim D	100
Sweep / Dim E	55
Control Length / Dim F	187
Dim G	112
Height / Dim Bv	98
Mounting Diameter	28.6mm / 1+1/8"
