Description
Öhlins' STX46 American V-Twin shocks are made to improve the comfort and performance of your Harley-Davidson. Available in a variety of configurations, these shocks are specifically designed and tested to suit your bike model.
Featuring a monotube, high gas-pressurized design with an internal reservoir in the main body of the shock. Adjustable rebound damping makes it easy to customize the setup for your riding preferences. Spring preload can be adjusted through the hose-mounted preload adjuster to compensate for weight variations, ensuring proper steering geometry on every ride.
Note: This SKU REPLACES HD 505
Features
- STX single-tube design
- Monotube shock with internal reservoir
- High-pressure nitrogen gas-charged
- 46-mm piston diameter
- Adjustable rebound damping
- Hose-mounted hydraulic preload adjuster
- Multiple spring rates available to accommodate a wide range of riders
- Top-level comfort, rideability, and performance
- Hard-anodized precision CNC-machined components
- Low-friction shaft and sealhead design
- Fully serviceable and repairable
Technical Specifications
- Length: 341.5
- Oil: Öhlins 1309
- Spring: 21103-36
- Spring Rate: 105 N/mm
- Stroke: 57.5 mm
- TÜV: Yes
Fitment
- Harley-Davidson Softail Fat Bob (2018 – 2023)
- Harley-Davidson Softail FXDR 114 (2018 – 2023)
- Harley-Davidson Softail Heritage Classic (2018 – 2023)
- Harley-Davidson Softail Heritage Classic 114 Anniversary (2018 – 2023)

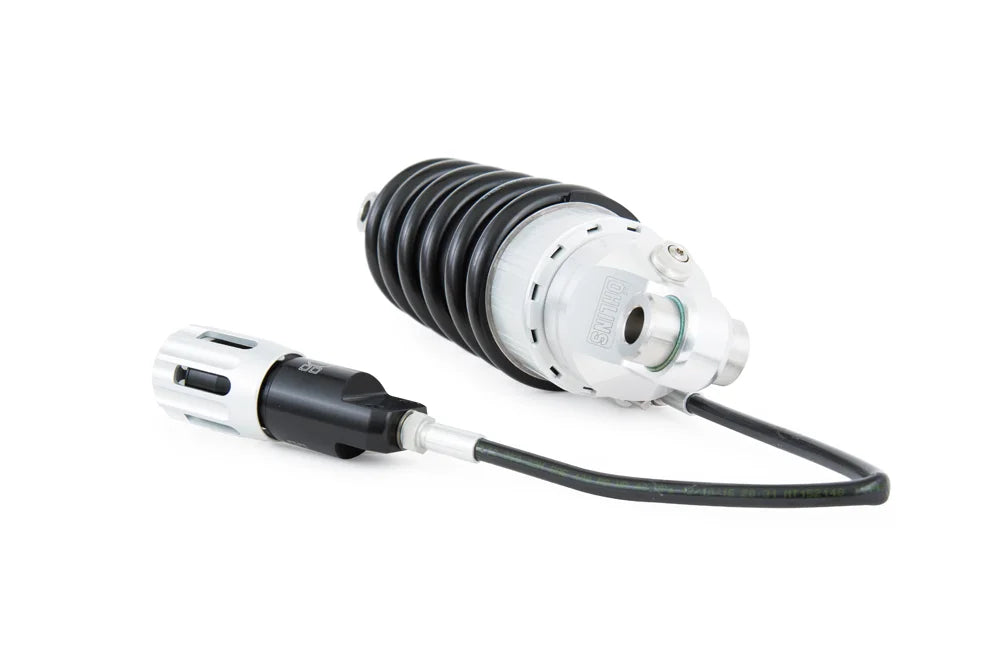

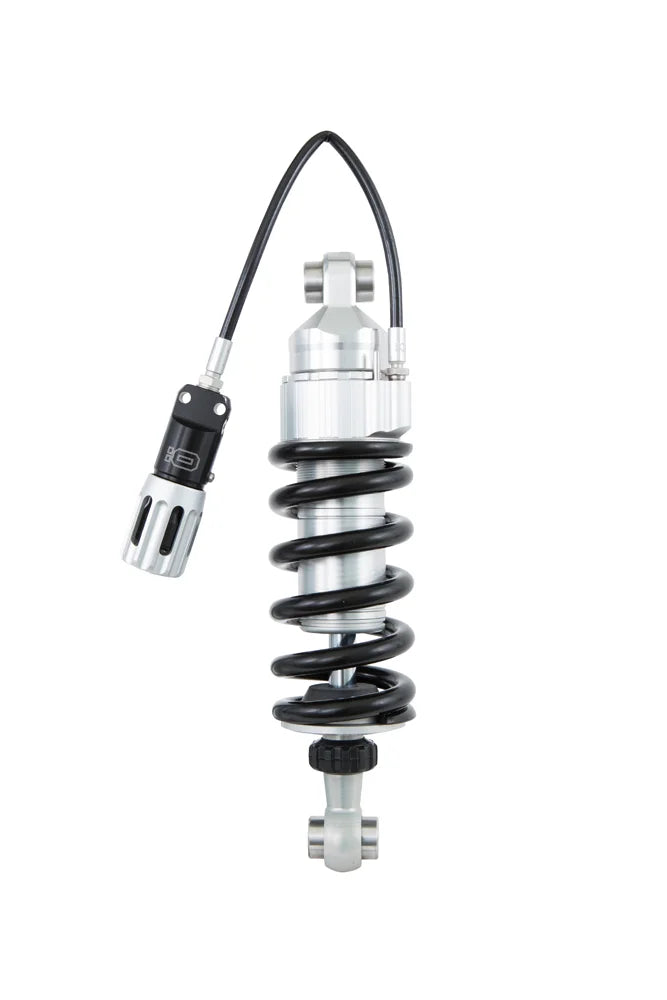

The picture shown can deviate from the product delivered.
ÖHLINS - Custom & Heritage STX46 Shock Absorber (HD 515)
fits the following vehicles:
fits the following vehicles:
No vehicle fitment set for this product yet.
HD 515
Available- Part number
- HD 515
- SKU
- OHLINS-HD_515
- HD 515
