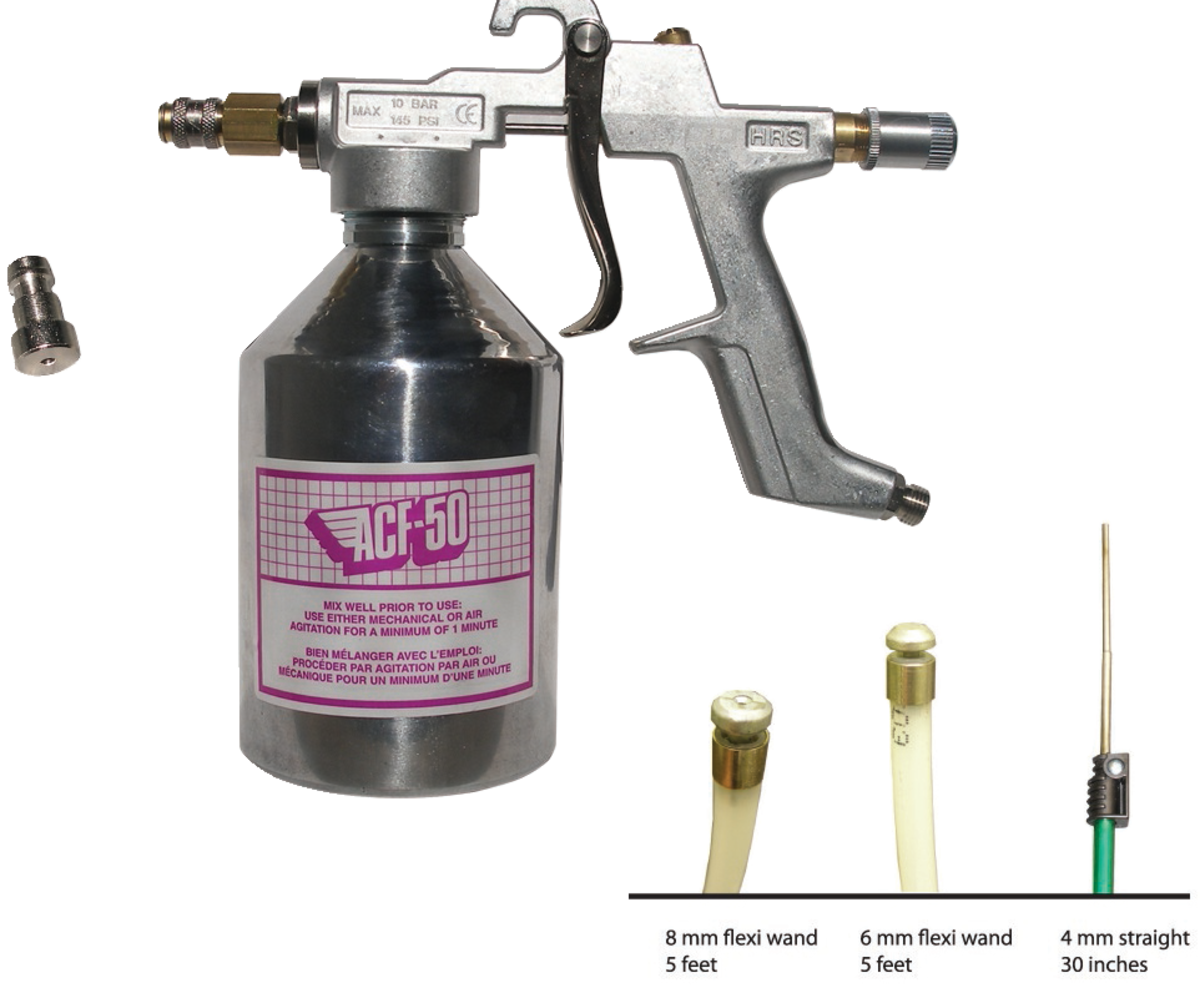

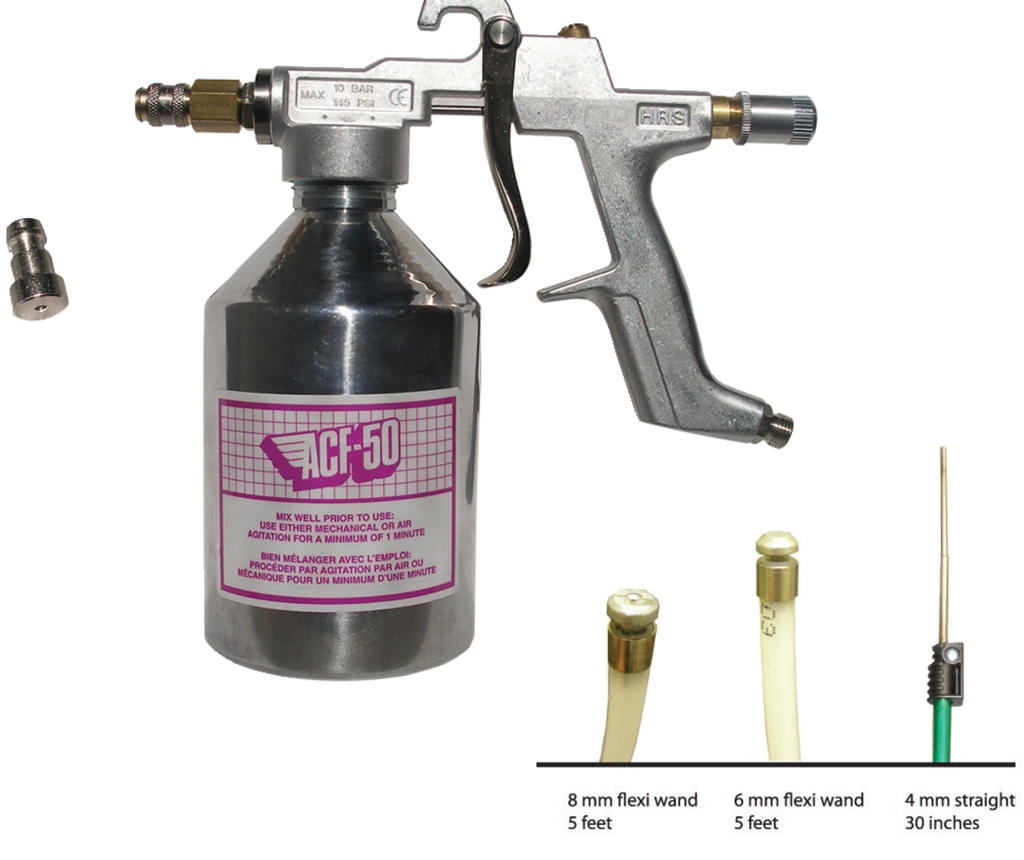

ACF-50 - Hand-Held Spray System

The Hand Held Spray System is designed to turn ACF-50 into a dense fog. The equipment has been preset and factory tested to achieve this goal. The equipment is rugged and will provide years of service, with virtually no maintenance, provided reasonable care is taken with its use.

Start Up:

1. Pour ACF-50 into pressure pot filling to within approximately two (2) inches of the top.
2. Attach pressure pot tightly to body of the gun
3. Before attaching air hose to gun, first adjust air pressure between 50 and 60 psi, then connect air hose.
4. Once you have attached the required application wand you are now ready to treat aircraft.

Clean Up:

When treatment process is complete disconnect the application wand. Remove air hose. Unscrew pressure pot just enough to release pressure, then slightly tighten. Remove application wands and return to storage tube.

System is equipped with 6 wands.
